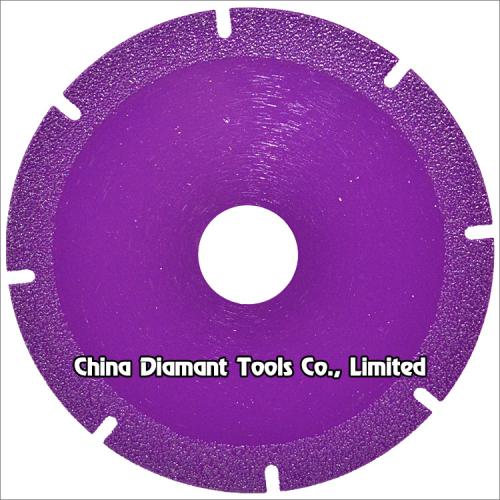

Vacuum brazed diamond saw blades for cutting sintered stone
This type vacuum brazed diamond saw blades are specially designed for cutting sintered stone which is a very hard artificial stone with the Mons' hardness scale between 6-7, also it is suitable for smooth cutting, glass, jade, crystal, wine bottles, marble, ceramics, concrete and similar materials.
The diamond cutting blade is resistant to high temperature, which can reduce vibration and cut straighter and faster.

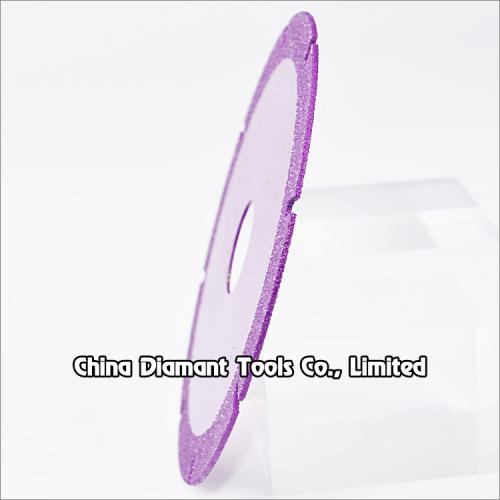

The 1mm ultra-thin saw blade does not damage the surface of the object, with uniform grinding force and good flatness.

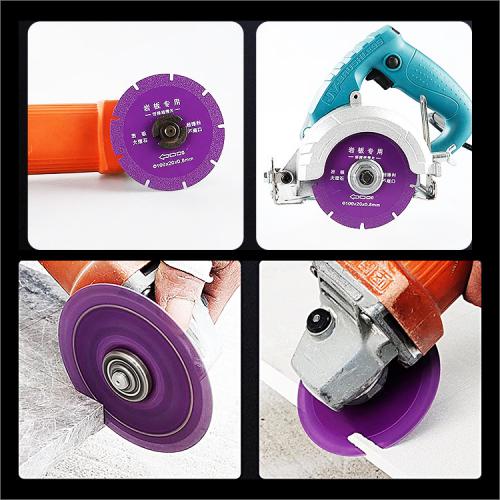

Easy to operate, suitable for angle grinder, wet or dry usage, water coolant is benefit for longer life.
Bore size: 20mm, 22.23mm or as per demand.
Code No. |
Diameter |
Segment Height |
DSB-VB-08-100 |
100mm(4") |
10-15mm |
DSB-VB-08-115 |
115mm(4-1/2") |
10-15mm |
DSB-VB-08-125 |
125mm(5") |
10-15mm |
The above specifications & photos are for reference, other specification may be available as per demand.
