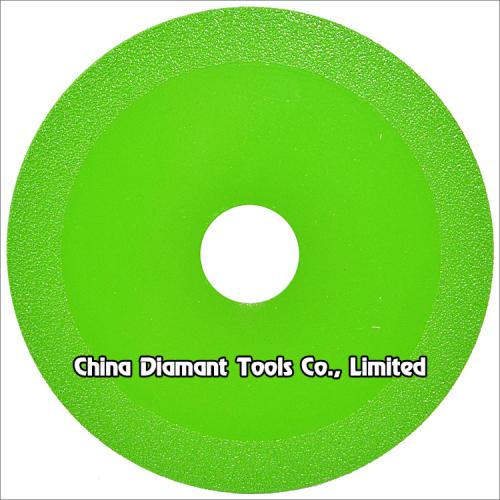

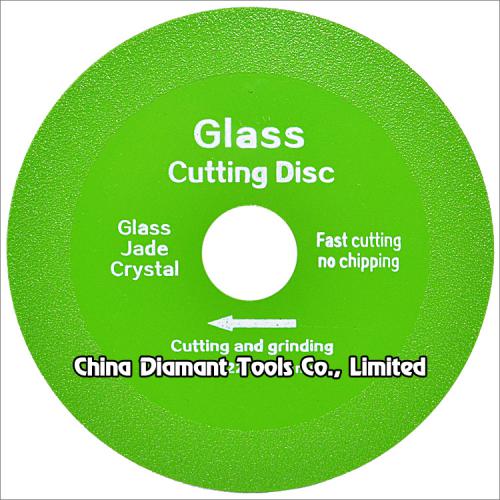

Vacuum brazed multi-function diamond saw blades for glass cutting
Diameter: 100-125mm
Bore: 20/22.23mm
Diamond width: 10-15mm
Production process: vacuum brazed
Vacuum brazed multi-function diamond saw blades for glass cutting
Fast and accurate
cutting: the diamond cutting blade is resistant to high temperature,
which can reduce vibration and cut straighter and faster. It is
sharp and will not collapse. It is multi-purpose, with small
incision and is resistant to cutting and wear.
Scope of application: for smooth cutting, chamfering and grinding of
glass, jade, crystal, wine bottle, ceramic, ceramic tiles and other
materials.
Chip free cutting: the 1mm ultra-thin saw blade does not damage the
surface of the object, with uniform grinding force and good
flatness. Low grinding noise, less dust, less debris, cutting
first-class!
Easy to use: it is easy to install and use, and can withstand the
requirements of dry / wet cutting and long-time continuous cutting.
Advanced materials: it adopts diamond high manganese steel, new
brazing process, upgraded and improved blade, which is more
convenient, safe and has a longer service life.
Thickness: 1.6mm(around, with diamond).
Bore size: 20mm, 22.23mm.
|
Code No. |
Diameter |
Diamond Width |
|
DSB-VB-GC-100 |
100mm(4") |
10-15mm |
| DSB-VB-GC-115 |
115mm(4-1/2") |
10-15mm |
| DSB-VB-GC-125 |
125mm(5") |
10-15mm |
The above specifications & photos are for reference, other specifications may be available as per demand.
