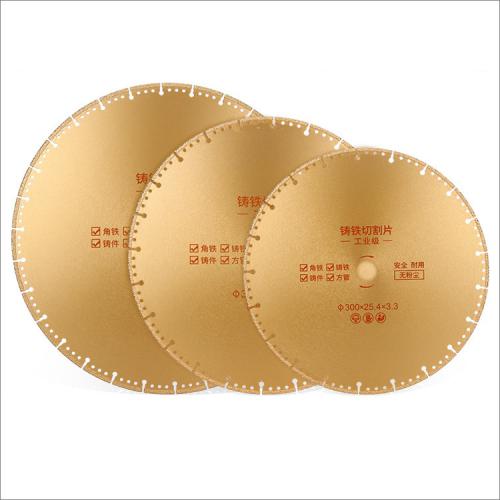

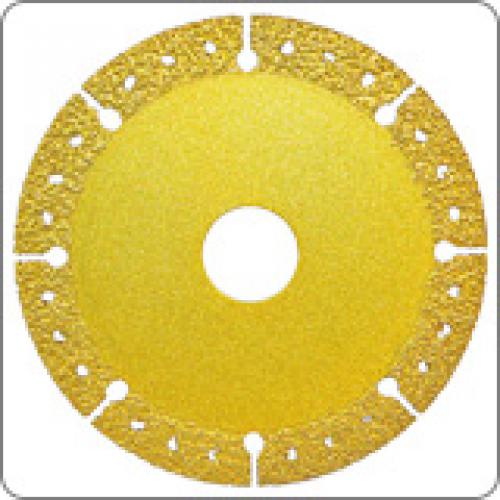

Diamond saw blades for steel metal general purpose cutting - vacuum brazed
Diameter: 100-500mm
Bore: 20/22.23/25.4/50/60mm
Segment height: 8mm
Production process: vacuum brazed
Diamond saw blades for steel metal & all purpose cutting - vacuum brazed

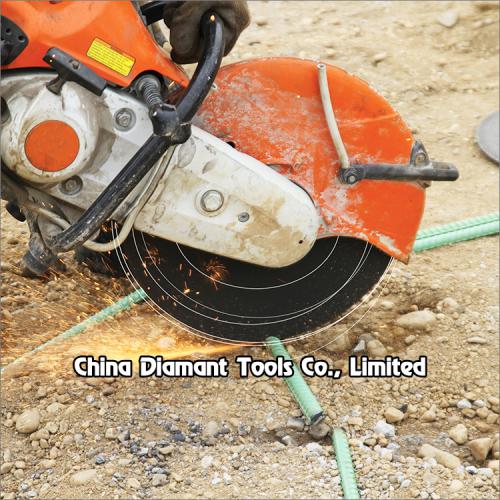

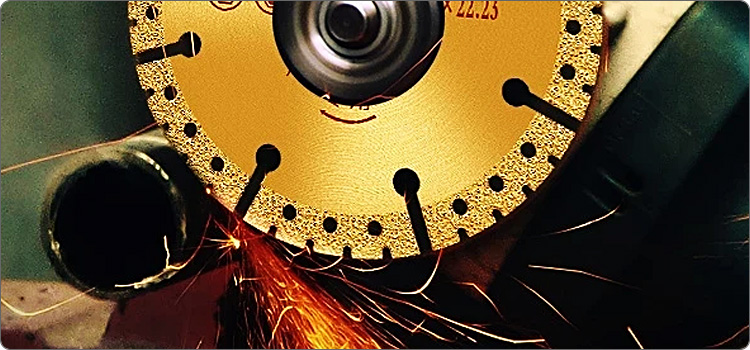

This type diamond multifunction saw blade is designed to cut through wide range tough material such as stone, bricks, blocks, cast iron, steel sections, ferrous and non-ferrous metal, drywall, reinforced concrete, fire door, plastic, PVC, etc., which is suitable for DIY, fire fighter, Rescue Team, Demolition Contractors.
Various diamond grain sizes and specification of the blades are available upon request.
Dry cutting, no water required, the saw blade is not easily deformed and the diameter will not decrease, but if water or other coolant is benefit for longer life .
Long lifetime for cutting metal materials, this brazing tools' lifetime is around 150 times than other ordinary grinding disc.
Not suitable for cutting: aluminum alloy, copper, wood.
Bore size: 25.4mm, 32mm, 50mm, 60mm or as per demand.
Welding method: vacuum brazed.
|
Code No. |
Diameter |
Segment Thickness |
Segment Height |
|
DSB-VB-01-100 |
100mm(4") |
2.3mm |
8mm |
| DSB-VB-01-115 |
115mm(4-1/2") |
2.3mm |
8mm |
| DSB-VB-01-125 |
125mm(5") |
2.3mm |
8mm |
| DSB-VB-01-150 |
150mm(6") |
2.7mm |
8mm |
| DSB-VB-01-180 |
180mm(7") |
2.9mm |
8mm |
| DSB-VB-01-200 |
200mm(8") |
2.9mm |
8mm |
| DSB-VB-01-230 |
230mm(9") |
3.1mm |
8mm |
| DSB-VB-01-250 |
250mm(10") |
3.3mm |
8mm |
| DSB-VB-01-300 | 300mm(12") | 3.3mm | 8mm |
| DSB-VB-01-350 | 350mm(14") | 3.5mm | 8mm |
| DSB-VB-01-400 | 400mm(16") | 3.5/3.8mm | 8mm |
| DSB-VB-01-500 |
500mm(20") |
4.3mm |
8mm |
The above specifications & photos are for reference, other specification may be available as per demand.
