Vacuum brazed diamond stubbing milling wheels CNC tools for stone granite marble limestone
Diameter: 50mm, 86mm, 100mm
Diamond working height: 20mm or 30mm
Regular diamond grit: #40 - #150
Bore size: 10mm or 50mm
Wet or dry use

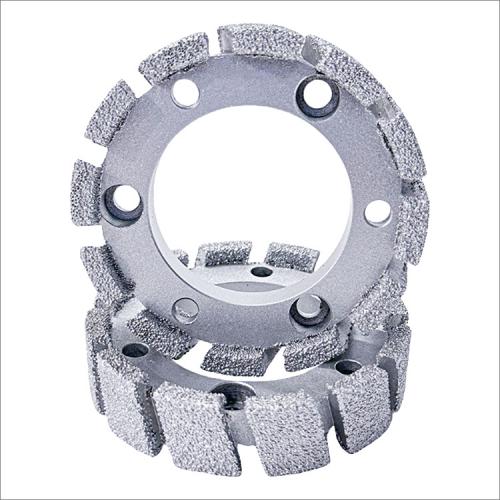

Vacuum brazed diamond stubbing / milling wheels CNC tools for stone granite marble limestone
2 to 4 inches vacuum brazed CNC stubbing wheels are designed for stone edging and shaping, especially work well for surface milling and material removal on granite marble limestone and other various stone materials or calibrating the thickness of the countertop where it overhangs the cabinets.
They are usually used on router machines or under the conduction of CNC machines, and have high processing efficiency and easy dust removal.
Diameter: 50mm, 86mm, 100mm.
Diamond working height: 20mm or 30mm.
Regular diamond grit: #40 - #150.
Bore size: 10mm or 50mm.
Wet or dry use.
|
Code No. |
Diameter |
Working thickness |
| DMW-VB01-050 | 50mm | 20mm |
| DMW-VB01-086 | 86mm | 20mm/30mm |
|
DMW-VB01-100 |
100mm | 20mm/30mm |
The above specifications & photos are for reference, other specification may be available as per demand.
