Diamond milling calibrating wheels for stone granite - steel core

item No : DMW-03
Diameter: 100-450mm
Connection: 25.4mm,50mm,60mm
Segment length: 20-40mm
Diamond grit: coarse,medium,smooth
Body: steel core
Production process: silver welded

Inquiry Now

Detailed Description

Inquiry Now

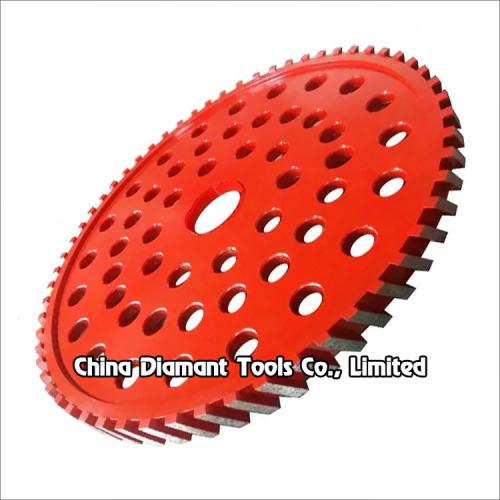

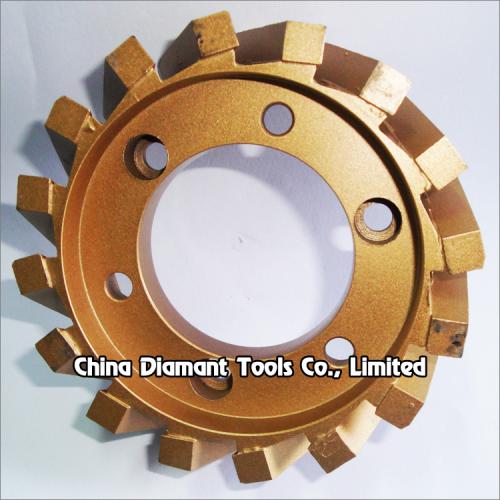

Diamond milling / Calibrating Wheels for Stone granite - steel core

Diamond segmented milling wheels with steel core are designed for stone edging and shaping with high merits, especially work well for surface calibrating and material removal on granite marble and other various stone materials.

They are usually used on bridge saw machines, stationary saws, milling machines or under the conduction of CNC machines with high processing efficiency, long grinding life and easy dust removal.

Wet use only.

Steel core with holes for less weight & coolant is available.

Regular diamond grit: coarse(#30/40), medium(#60/80), smooth(#100/120).

Code No.	Diameter	Segment Length	Bore Size
DMW-03-100	100mm(4")	20mm 25mm 30mm 35mm 40mm or as per demand	25.4mm 50mm 60mm CNC 1/2 Gas Coupling
DMW-03-125	125mm(5")
DMW-03-150	150mm(6")
DMW-03-250	250mm(10")
DMW-03-300	300mm(12")
DMW-03-350	350mm(14")
DMW-03-400	400mm(16")
DMW-03-450	450mm(18")

The above specifications & photos are for reference, other specification may be available as per demand.
