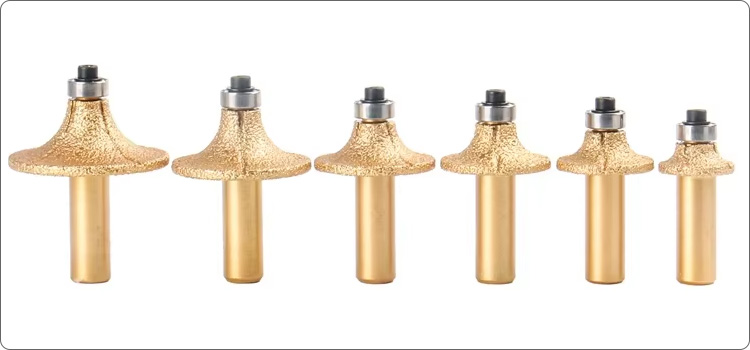

Vacuum brazed diamond router bits edge milling cutters stone profiling wheels - half bullnose
Diameter: 23.5-50mm
Radian: R5-R18
Shank diameter: 12.7mm
Shank length: 33mm or as demand
Diamond grit: coarse,medium or smooth
Production process: vacuum brazed
Vacuum brazed diamond router bits edge milling cutters stone profiling wheels - half bullnose

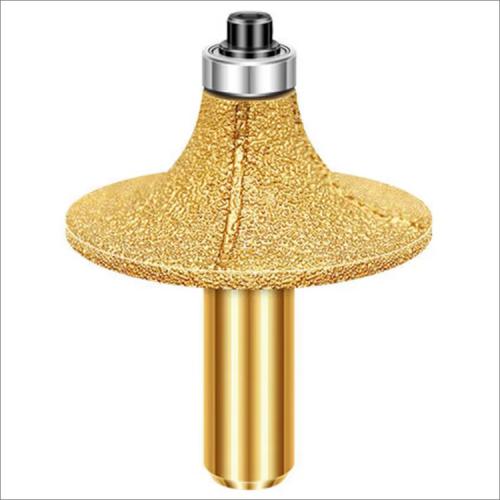

This type vacuum brazed diamond half bullnose edge profiling wheels
are
mainly used for shaping the edge or curve line for various granite
marble stone ceramic on angle grinder or CNC profile machine.
With high quality diamond and special vacuum brazing technology,
diamond is firmly brazed onto the steel body, which makes its
cutting efficiency higher, working life longer, cost lower and
performance higher.
Use wet or dry, water or other cooling agent is recommended for longer life of the bits.
Regular shank diameter 12.7mm and shank length 32mm or 35mm.
Diamond grit: coarse, medium, fine.
| Code | Diameter | Radian |
| DGB-VB-07-23 | 23.5mm | R5 |
| DGB-VB-07-31 | 31mm | R8 |
| DGB-VB-07-35 | 35mm | R10 |
| DGB-VB-07-38 | 38mm | R12 |
| DGB-VB-07-44 | 44mm | R15 |
| DGB-VB-07-50 | 50mm | R18 |
The above specifications & photos are for reference, other specification may be available as per customer's demand.
