Vacuum brazed diamond burr heads grinding bits - ball head
Ball diameter: 12-25mm
Shank: 6mm
Total length: 60mm or as per demand
Diamond grit: coarse,medium or smooth
Production process: vacuum brazed

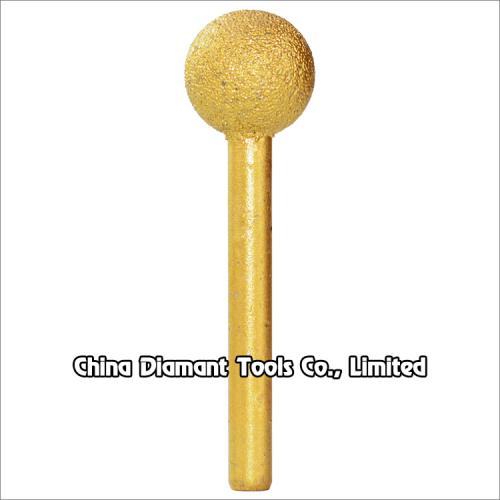

Vacuum brazed diamond burr heads grinding bits - ball head
These vacuum brazed diamond grinding bits with ball head are made of high quality coarse grit diamond and usually installed on the electronic grinder, hanging mill or hand electric drill for sculpturing, dressing, grinding in ceramic, glass, stone, alloy, cast iron, iron plate, stainless steel, carbide, and other abrasive materials.
These grinding bits are environmentally friendly and efficient, hard and does not break, have good shock and compression resistance, do not shed sand, do not fall off, they are strong and wear resistant, and sharp for grinding.
They are perfect for DIY crafts, hobbies, home repairs, engraving and polishing, jewelry making, and more.

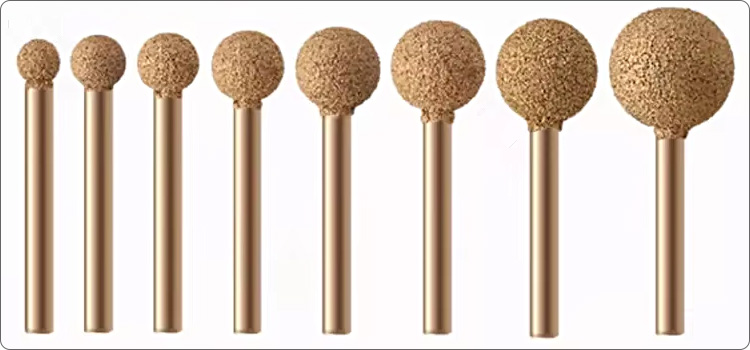

Head diameter: 12/14/16/18/20/25mm, shank diameter: around 6mm, total length: around 60mm.
Diamond grit: coarse, medium, fine.
| Code | Ball diameter | Shank diameter | Regular total length |
| DGB-VB-04-12 | 12mm | 6mm | 60mm |
| DGB-VB-04-14 | 14mm | 6mm | 60mm |
| DGB-VB-04-16 | 16mm | 6mm | 60mm |
| DGB-VB-04-18 | 18mm | 6mm | 60mm |
| DGB-VB-04-20 | 20mm | 6mm | 60mm |
| DGB-VB-04-25 | 25mm | 6mm | 60mm |
The above specifications & photos are for reference, other specification may be available as per customer's demand.
