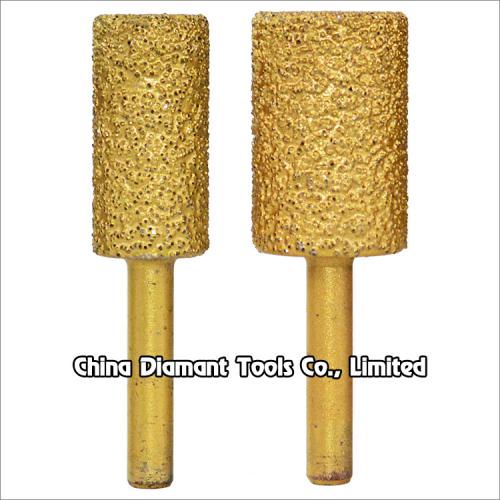

Vacuum brazed diamond burr heads grinding bits - cylindrical tip
item No : DGB-VB-01
Diameter: 8-25mm
Shank: 6mm
Diamond length: 30mm
Total length: 60mm or as per demand
Diamond grit: coarse,medium or smooth
Production process: vacuum brazed
Diameter: 8-25mm
Shank: 6mm
Diamond length: 30mm
Total length: 60mm or as per demand
Diamond grit: coarse,medium or smooth
Production process: vacuum brazed
Vacuum brazed diamond burr heads grinding bits - cylindrical tip

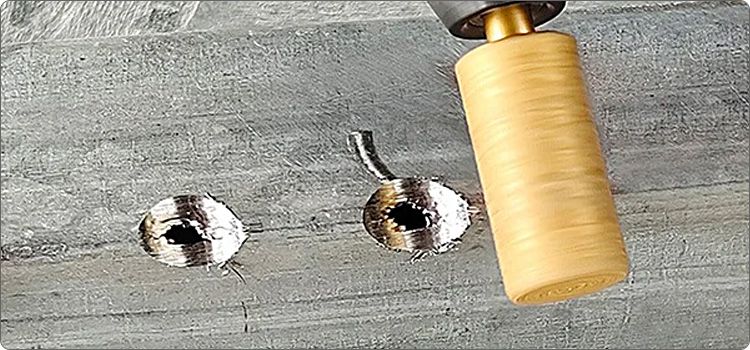

These vacuum brazed diamond grinding bits with cylindrical tip are made of high quality diamond and usually installed on the electronic grinder, hanging mill or hand electric drill for sculpturing, dressing, grinding in ceramic, glass, stone, alloy, cast iron, iron plate, stainless steel and other abrasive materials.
Shank: 6mm round shank, and head diameter: 8/10/13/15/18/20/22/25mm.
Diamond grit: coarse, medium, fine.

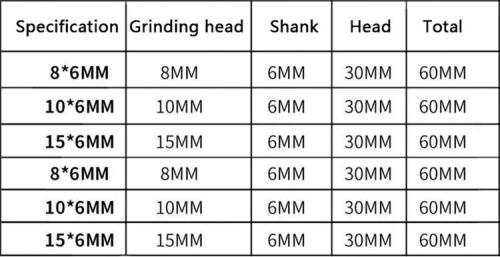

| Code | Diameter | Shank | Head length | Regular total length |
| DGB-VB-01-08 | 8mm | 6mm | 30mm | 60mm |
| DGB-VB-01-10 | 10mm | 6mm | 30mm | 60mm |
| DGB-VB-01-13 | 13mm | 6mm | 30mm | 60mm |
| DGB-VB-01-15 | 15mm | 6mm | 30mm | 60mm |
| DGB-VB-01-18 | 18mm | 6mm | 30mm | 60mm |
| DGB-VB-01-20 | 20mm | 6mm | 30mm | 60mm |
| DGB-VB-01-22 | 22mm | 6mm | 30mm | 60mm |
| DGB-VB-01-25 | 25mm | 6mm | 30mm | 60mm |
The above specifications & photos are for reference, other specification may be available as per customer's demand.
Tags
vacuum brazed diamond grinding head, vacuum brazed diamond grinding bits, diamond grinding bits, small diamond grinding heads, diamond sculpturing tools, diamond dressing heads, diamond dressing bits, stone grinding bits, granite grinding bits, marble grinding bits, ceramic grinding bits, glass grinding bits, alloy grinding bits, cast iron grinding bits, iron plate grinding bits, stainless steel grinding bits
