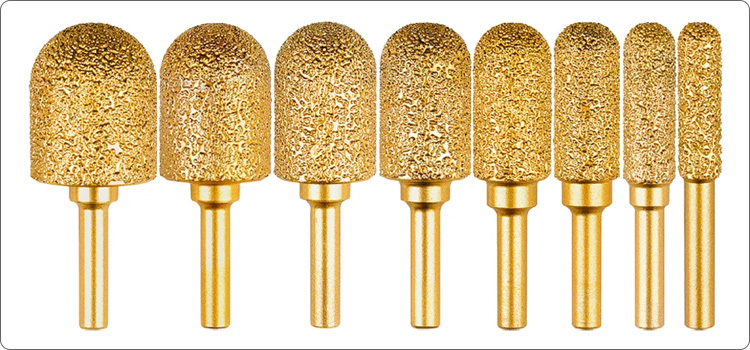

Vacuum brazed diamond burr heads grinding bits stone graver - round head
Diameter: 8-25mm
Shank: 6mm
Diamond length: 30mm
Total length: 60mm or as per demand
Diamond grit: coarse,medium or smooth
Production process: vacuum brazed
Vacuum brazed diamond burr heads grinding bits stone graver - round head

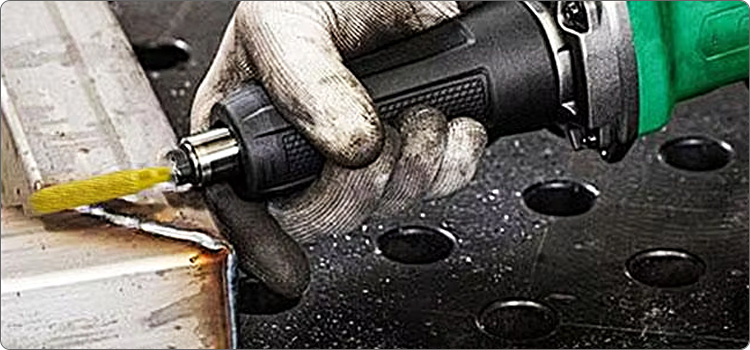

These vacuum brazed diamond grinding bits with round head are made of high quality diamond and usually installed on the electronic grinder, hanging mill or hand electric drill for sculpturing, dressing, grinding in ceramic, glass, stone, alloy, cast iron, iron plate, stainless steel and other abrasive materials.
These grinding bits are environmentally friendly and efficient, hard and does not break, have good shock and compression resistance, do not shed sand, do not fall off, they are strong and wear resistant, and sharp for grinding.
They are perfect for DIY crafts, hobbies, home repairs, engraving and polishing, jewelry making, and more.
Head diameter: 8/10/13/15/18/20/22/25mm, shank: 6mm round shank, grinding head length: around 30mm.
Diamond grit: coarse, medium, fine.
| Code | Diameter | Shank | Head length | Regular total length |
| DGB-VB-02-08 | 8mm | 6mm | 30mm | 60mm |
| DGB-VB-02-10 | 10mm | 6mm | 30mm | 60mm |
| DGB-VB-02-13 | 13mm | 6mm | 30mm | 60mm |
| DGB-VB-02-15 | 15mm | 6mm | 30mm | 60mm |
| DGB-VB-02-18 | 18mm | 6mm | 30mm | 60mm |
| DGB-VB-02-20 | 20mm | 6mm | 30mm | 60mm |
| DGB-VB-02-22 | 22mm | 6mm | 30mm | 60mm |
| DGB-VB-02-25 | 25mm | 6mm | 30mm | 60mm |
The above specifications & photos are for reference, other specification may be available as per customer's demand.
