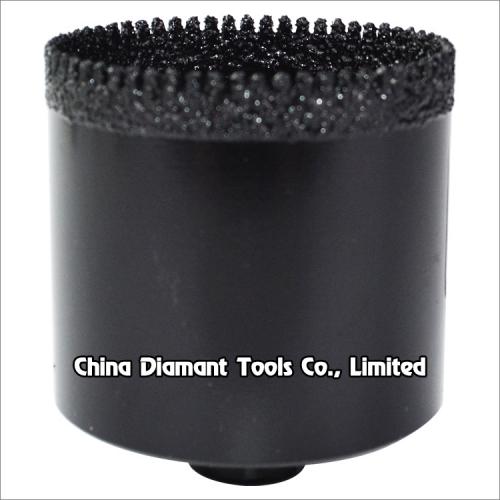

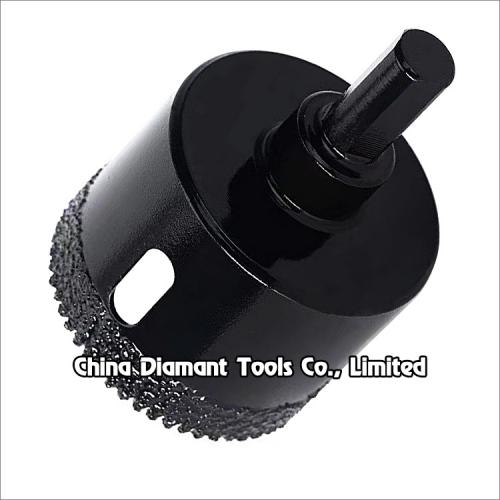

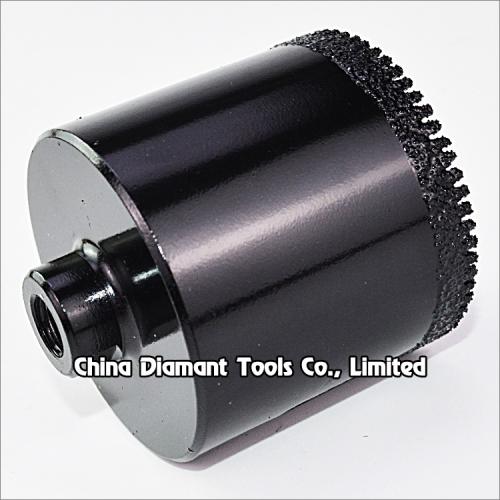

Vacuum brazed diamond drill bits for drilling stone granite marble ceramic general purpose

item No : DDB-VB-02
Diameter: 25mm-45mm
Bore Size: 5/8"-11,M14,1/2 Gas,Straight Shank
Length(mm): 40mm-60mm or as per demand
Diamond height: 5-10mm or as per demand
Diamond grit: #30/40/60/80/100/120
Production process: vacuum brazed

Vacuum brazed diamond drill bits for drilling stone ceramic concrete general purpose


Vacuum brazed diamond core drill bits are also called diamond hole saws, which is suitable for electric portable angle grinder or drilling machines for drilling ceramic, porcelain, marble, granite, stone, concrete and other composite materials, great for Home, Hobby, Craft, Construction, etc.


Dry or wet use, water coolant will be much better for drilling performance.


Features:

1. Fast and Smooth drilling;
2. Long lifetime;
3. Less Chipping;
4. Minimizing any breakage;
5. Less loss of material;
6. Less heat generation;
7. Better finish quality.


Instructions for use:


1. When operating, first incline the drill bit at 45 degrees, and slow down the speed of the electric drill, then erect the electric drill.

2. When it is about to drill through, slow down the speed again.
3. During the whole drilling process, keep adding water to cool.


Code No.

Diameter

(mm)

Length

(mm)

Diamond Height

Diamond Grit

Connection

DDB-VB-02-025 25

40mm

50mm

60mm

or

as per demand



5-10mm

or

as per demand



#30/40/60/80/100/120

5/8"-11

M14

1/2 Gas

Straight Shank

(Round or Hexagonal)

DDB-VB-02-030 30
DDB-VB-02-032 32
DDB-VB-02-035 35
DDB-VB-02-038 38
DDB-VB-02-040 40
DDB-VB-02-045 45


The above specifications & photos are for reference, other specification may be available as per customer's demand.

Vacuum brazed diamond tools use the special metal bonding and under the vacuum environment make the diamond brazed on the tools, So it will be more fastness than the electroplated diamond tools. More importantly, it can dry use even work at the poor environment. As it’s high efficiency, the working life is also longer than the electroplated diamond tools.
