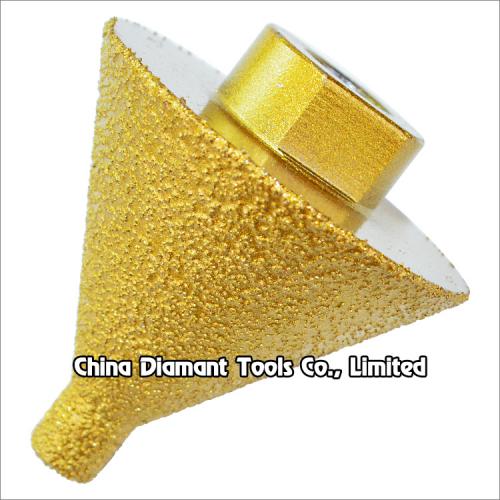

Vacuum brazed diamond bevel chamfering wheels cone hole expending drill bits conical grinding heads
Diameter: 38mm,50mm
Working thickness: 35mm,45mm
Bore size: M10, M14, 5/8"-11
Diamond grit: coarse,medium or smooth
Production process: vacuum brazed
Vacuum brazed diamond bevel chamfering wheels / cone hole expending drill bits / conical grinding heads

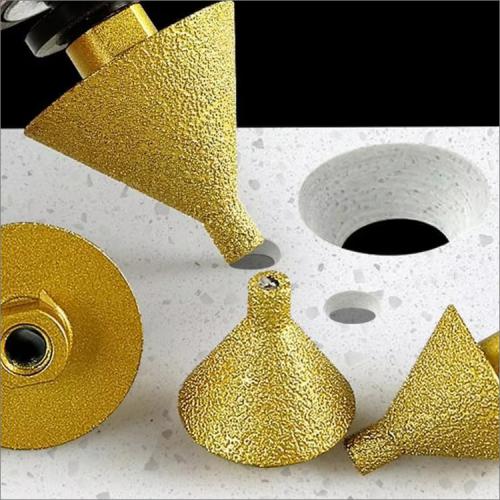

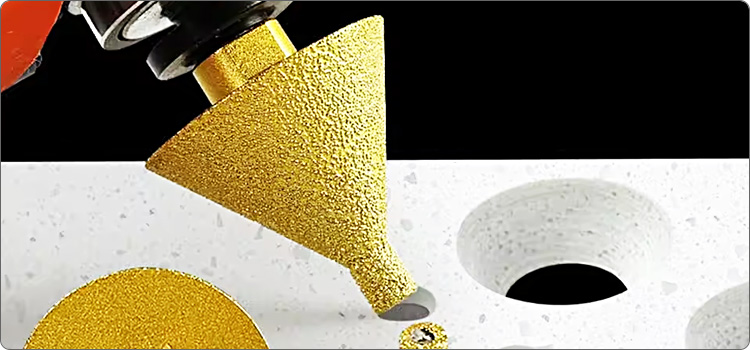

These vacuum brazed diamond bevel chamfering wheels are made of high quality diamond and usually installed on the angle grinder for expanding holes, chamfering, and polishing granite, marble, quartz stone, ceramic tiles, etc. with the features of sharp grinding, wear-resistant and durable, environmentally friendly, and long service life.
Use wet or dry, water or other cooling agent is recommended for longer life of the bits.
Head diameter: 38/50mm, bore size: M10 / M14 / 5/8"-11.
Diamond grit: coarse, medium, fine.

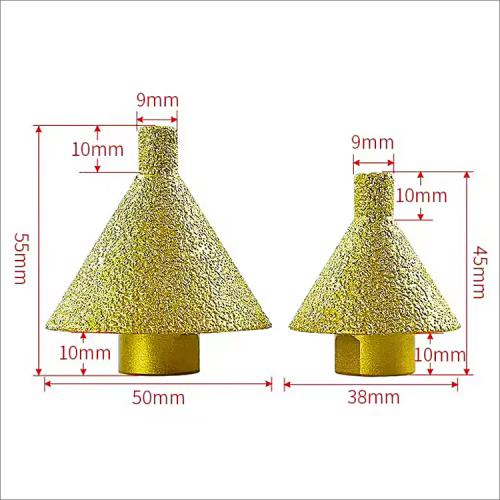

| Code | Diameter | Working thickness | Bore |
| DCGH-VB-01-38 | 38mm | 35mm | M10 / M14 / 5/8"-11 |
| DCGH-VB-01-50 | 50mm | 45mm | M10 / M14 / 5/8"-11 |
The above specifications & photos are for reference, other specification may be available as per customer's demand.
