10"(250mm) PCD plate diamond disc for concrete floor grinding 1/2 PCDs
Diameter: 10"(250mm)
Segment type: PCD + diamond
PCD size: 1/2 round*10pcs
Diamond segment: H5mm*10pcs
Body: steel base
Using type: wet or dry
Materials grinding: concrete,terrazzo floor

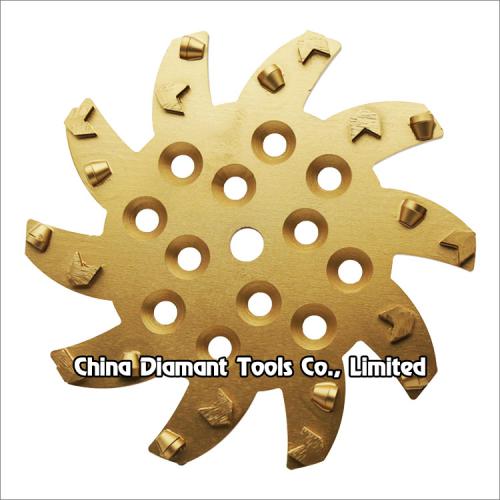

10"(250mm) PCD plate diamond floor grinding disc for concrete terrazzo
10pcs 1/2 round PCDs + 10pcs assisted arrow diamond segments
This 250mm PCD grinding plate with multi-hole and 10pcs 1/2 round PCDs + 10pcs assisted arrow diamond segments design fits to most of the single head grinder in the market, such as Blastrac/Trelawny grinders. We cut the steel body carefully into flower shape and mill 12 standard mounting holes on it, which helps to reduce the body weight and match the floor grinders perfectly.
It is mainly used for removing most types of coatings such as paint, varnish, glue, epoxy, acrylic, screed residue, VCT mastic, black tar adhesive as well as thick rubber materials on the concrete terrazzo floor.
It is made from the high quality poly crystalline diamonds, the assisted arrow segments prevents damage to the floor by controlling the depth of the cuts from the PCDs.
It is ideal for the initial steps in concrete polishing procedures, good to coarse grinding concrete surface quickly, make the surface leveling, and achieve maximum square footage at minimum cost.
|
Code No. |
Diameter |
Segment Size/No. |
Diamond Segment |
|
DGD-01-P09 |
10"(250mm) |
1/2 round*10pcs |
H5mm*10pcs #30 |
The above specifications & photos are for reference, other specification may be available as per demand.
