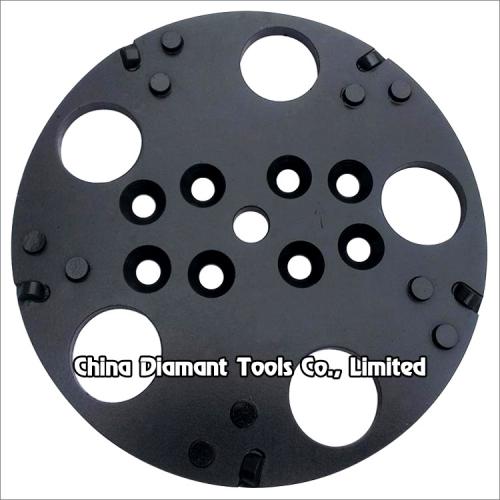

10 inches 250mm PCD TCT scraper diamond disc floor grinding plate for concrete
Diameter: 10"(250mm)
Segment type: PCD + diamond
PCD size: 1/2 round*5pcs
TCT segment: 10pcs
Body: steel base
Using type: wet or dry
Materials grinding: concrete,terrazzo floor
10"(250mm) PCD TCT scraper diamond disc floor grinding plate for coating removal
5pcs 1/2 round PCDs + 10pcs assisted TCT segments
This 250mm PCD grinding plate with multi-hole and 5pcs 1/2 round PCDs & 10pcs assisted TCT segments design fits to most of the single head grinder in the market, such as Blastrac/Trelawny grinders.
It is mainly used for removing most types of coatings such as paint, varnish, glue, epoxy, acrylic, screed residue, VCT mastic, black tar adhesive as well as thick rubber materials on the concrete terrazzo floor.
It is made from the high quality poly crystalline diamonds, the assisted TCT segments prevent damage to the floor by controlling the depth of the cuts from the PCDs.
It is ideal for the initial steps in concrete polishing procedures, good to coarse grinding concrete surface quickly, make the surface leveling, and achieve maximum square footage at minimum cost.
|
Code No. |
Diameter |
Segment Size/No. |
TCT |
|
DGD-01-P07 |
10"(250mm) |
1/2 round*5pcs |
10pcs |
The above specifications & photos are for reference, other specification may be available as per demand.
