10 inches 250mm diamond disc floor grinding plates for concrete - cylindrical segments
For Blastrac floor grinders
Diameter: 10 inches(250mm)
Segment size and No.: Dia.20xH10mm * 20pcs
Diamond grit: #6 - #200
Wet or dry use

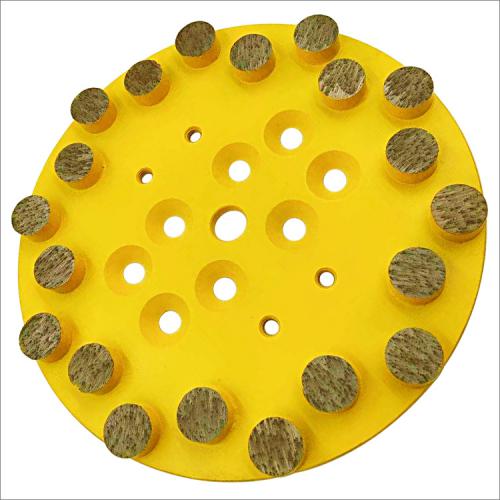

10 inches 250mm diamond disc floor grinding plate for concrete - cylindrical segments
This type diamond disc floor grinding plate with multi-hole and cylindrical diamond segments fit to most of the single head grinder in the market, such as Blastrac Trelawny grinders. They are designed for removing hard epoxies and coatings, erasing concrete imperfections, leveling uneven spots or joints and smoothing rough or patched concrete surfaces with high grinding efficiency and long working life.
They can be used dry, but will give better performance and life used wet.
We provide you with different metal bonds to fit different hardness of concrete, and a wide range of diamond grits can be chosen.
For coarse grinding(#6-#40), medium grinding(#50-#80), fine grinding(#100-#200).
Diamond grit No.: #6, #16, #20, #25, #30, #40, #50, #60, #80, #100, #120, #150, #170,#200.
Segment bond: soft, medium, hard.
|
Code No. |
Diameter |
Segment Size/No. |
|
DGD-Blastrac-08-250 |
10"(250mm) |
Dia.20xH10mm*20pc |
The above specifications & photos are for reference, other specification may be available as per demand.
