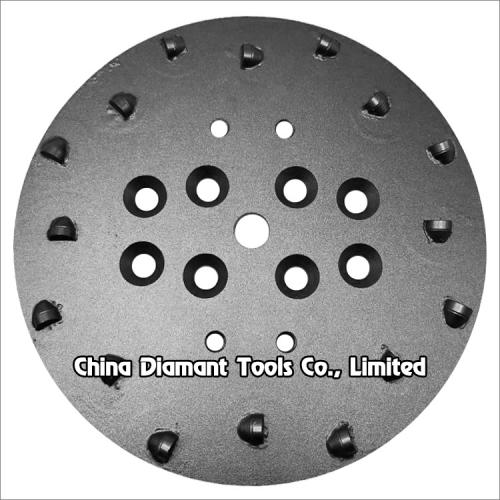

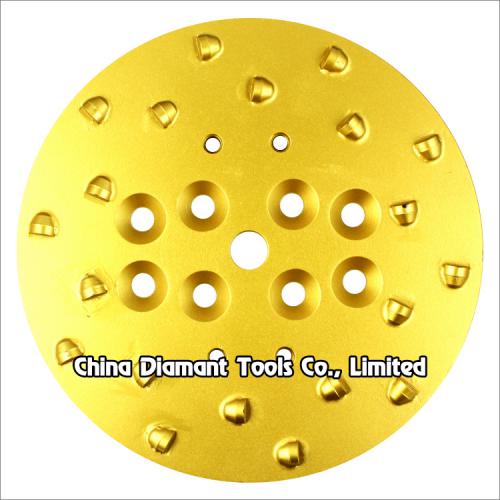

10 inches 250mm PCD scraper diamond disc concrete floor grinding plate - 1/2 round PCDs
Diameter: 10"(250mm)
Segment type: PCD
Segment size: 1/2 round
Segment No.: 12-20pcs
Body: steel base
Using type: wet or dry
Materials grinding: concrete,terrazzo floor
10"(250mm) PCD scraper diamond disc floor grinding plate for coating removal
12-20pcs 1/2 Round PCD segments
This 250mm PCD grinding plate with and multi-hole and 12-20pcs 1/2 round PCD segments design fits to most of the single head grinder in the market, such as Blastrac/Trelawny grinders.
This PCD grinding disc is mainly used for removing most types of coatings such as paint, varnish, glue, epoxy, acrylic, screed residue, VCT mastic, black tar adhesive as well as thick rubber materials on the concrete terrazzo floor.
It is made from the high quality poly crystalline diamonds and ideal for the initial steps in concrete polishing procedures, good to coarse grinding concrete surface quickly, make the surface leveling, and achieve maximum square footage at minimum cost.
|
Code No. |
Diameter |
Segment Size/No. |
|
DGD-01-P01-12 |
10"(250mm) |
1/2 round*12pcs |
| DGD-01-P01-16 | 10"(250mm) | 1/2 round*16pcs |
| DGD-01-P01-20 | 10"(250mm) | 1/2 round*20pcs |
The above specifications & photos are for reference, other specification may be available as per demand.
