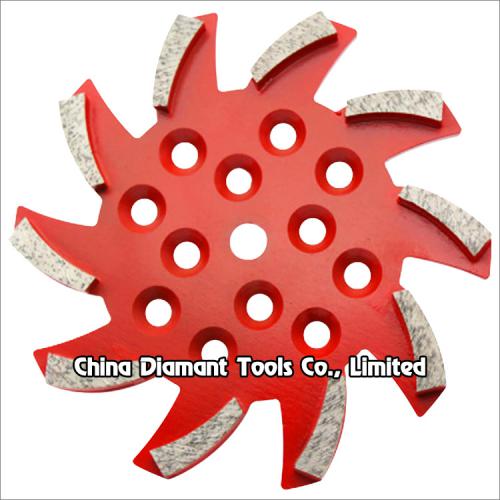

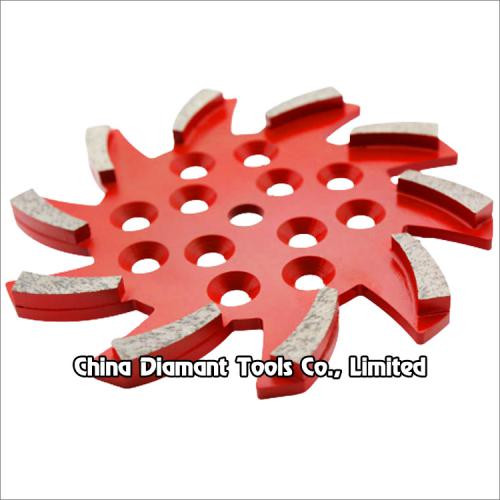

10 inches 250mm diamond disc floor grinding plate for concrete - spiral segments
Diameter: 10"(250mm)
Segment type: metal bond
Segment size: 50x14/10x8mm
Segment No.: 10pcs
Diamond grit: #6-#200(coarse, medium, smooth)
Bond: soft, medium, hard
Using type: wet or dry
Materials grinding: concrete,terrazzo floor
10"(250mm) diamond disc floor grinding plate for concrete - spiral segments
This 250mm diamond disc floor grinding plate with spiral segments and multi-holes design fits to most of the single head grinder in the market, such as Blastrac/Trelawny grinders. We cut the steel body carefully into flower shape and mill 12 standard mounting holes on it, which helps to reduce the body weight and match the floor grinders perfectly.
It is designed for removing hard epoxies and coatings, erasing concrete imperfections, leveling uneven spots or joints and smoothing rough or patched concrete surfaces. It has 10pcs spiral diamond segments and it is very high efficient for grinding deep on the concrete surface.
It can be used dry, but will give better performance and life used wet.
We provide you with different metal bonds to fit different hardness of concrete, and a wide range of diamond grits can be chosen.
For coarse grinding(#6-#40), medium grinding(#50-#80), fine grinding(#100-#200).
Diamond grit No.: #6, #16, #20, #25, #30, #40, #50, #60, #80, #100, #120, #150, #170,#200.
Segment bond: soft, medium, hard.
|
Code No. |
Diameter |
Segment Size/No. |
Grit No. |
|
DGD-01-04 |
10"(250mm) |
50x14/10x8mm*10pc |
#6 - #200 |
The above specifications & photos are for reference, other specification may be available as per demand.
