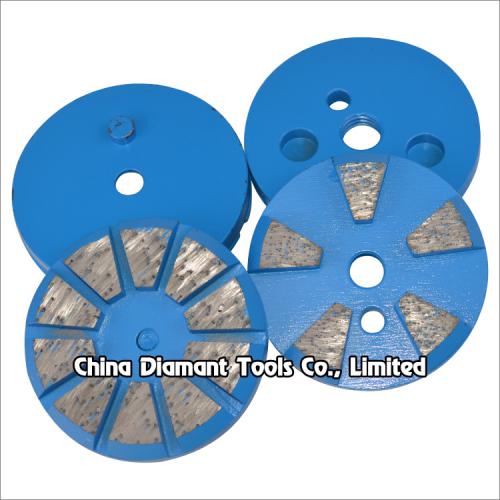

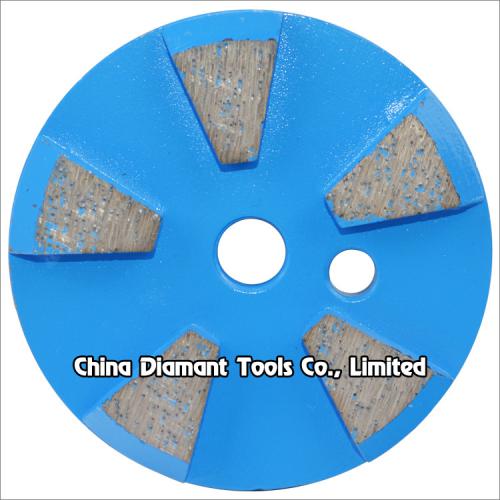

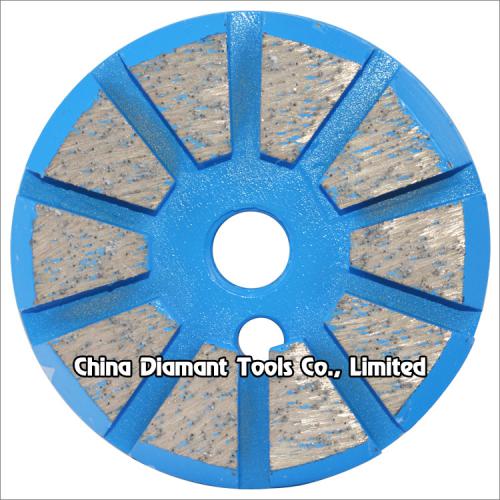

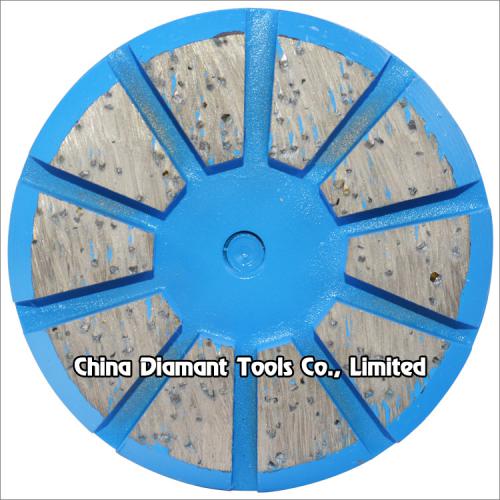

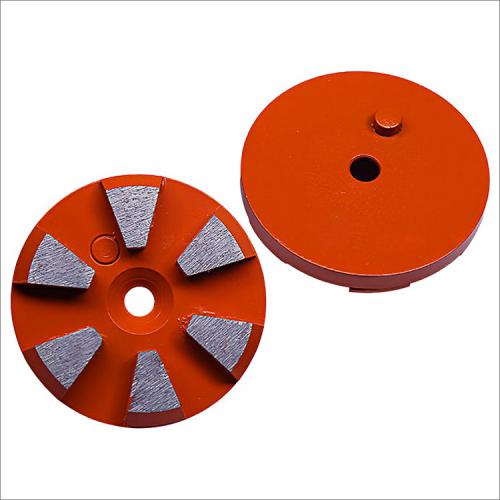

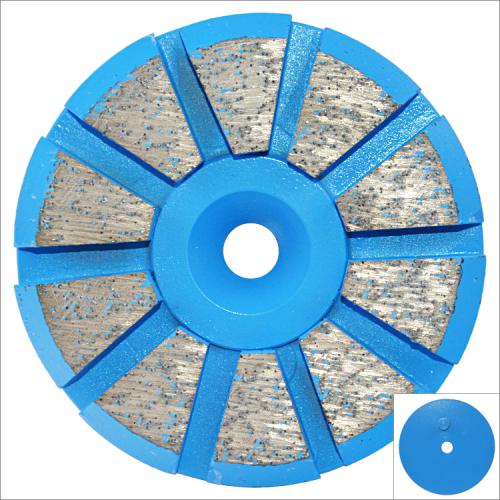

3 inches 80mm diamond disc for STI Sase floor grinders - metal bond beveled edge
Diameter: 3"(80mm)
Segment type: metal bond beveled edge
Segment size: H7.5mm*5/10pcs
Diamond grit: #6-#200(coarse, medium, smooth)
Body: steel base
Using type: wet or dry
Materials grinding: concrete,terrazzo floor
3"(80mm) diamond discs concrete floor grinding wheels for STI/Sase grinders - metal bond beveled edge
These metal bond diamond discs are mainly used for all-purpose grinding on a wide range of substrates, concrete terrazzo floor preparation, professional for quick removal of epoxy, paint, glue, mastics, and coatings.
They are suitable for STI/Sase/Stonekor/PioneerEclipse floor grinders with polar magnetic 1- Pin system, etc.
The beveled edge segments are for avoiding scratch marks on floors.
It can be used dry, but will give better performance and life used wet.
We provide you with different metal bonds to fit different hardness of concrete, and a wide range of diamond grits can be chosen.
For coarse grinding(#6-#40), medium grinding(#50-#80), fine grinding(#100-#200).
Diamond grit No.: #6, #16, #20, #25, #30, #40, #50, #60, #80, #100, #120, #150, #170,#200.
Segment bond: soft, medium, hard.
| Code No. | Diameter | Segment Size/No. | Grit |
|
DGD-04-01-5 |
3"(80mm) |
H7.5mm*5pcs |
#6 - #200 |
| DGD-04-01-10 | 3"(80mm) |
H7.5mm*10pcs |
The above specifications & photos are for reference, other specification may be available as per demand.
