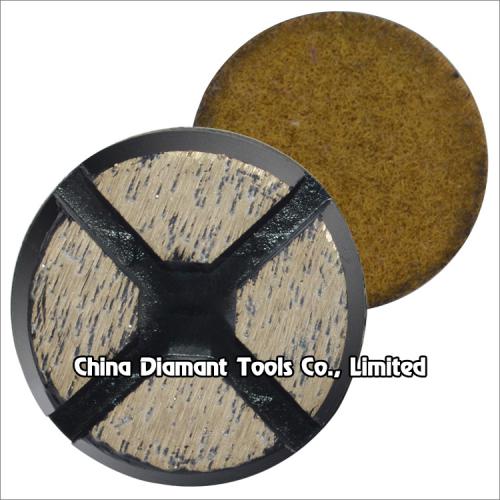

3" 4" diamond grinding discs for concrete- metal bond velcro backed
Diameter: 3"(80mm), 4"(100mm)
Segment type: metal bond velcro backed
Segment size: H8mm*4pcs
Diamond grit: #6-#200(coarse, medium, smooth)
Body: steel base
Using type: wet or dry
Production process: high-frequency welded
Materials grinding: concrete,terrazzo floor
3" 4" diamond discs floor grinding wheels - metal bond velcro backed
This velcro backed diamond grinding discs with 4pcs fanlike metal bond segments are designed to remove coatings on concrete terrazzo floor to prepare the floor for polishing.
They can fit on most floor machines easily via velcro backing plate.
It can be used dry, but will give better performance and life used wet.
We provide you with different metal bonds to fit different hardness of concrete, and a wide range of diamond grits can be chosen.
For coarse grinding(#6-#40), medium grinding(#50-#80), fine grinding(#100-#200).
Diamond grit No.: #6, #16, #20, #25, #30, #40, #50, #60, #80, #100, #120, #150, #170,#200.
Segment bond: soft, medium, hard.
| Code No. | Diameter | Segment Size/No. | Grit |
|
DGD-04-04-80 |
3"(80mm) |
H8mm*4pcs |
#6 - #200 |
| DGD-04-04-100 | 4"(100mm) |
H8mm*4pcs |
The above specifications & photos are for reference, other specification may be available as per demand.
