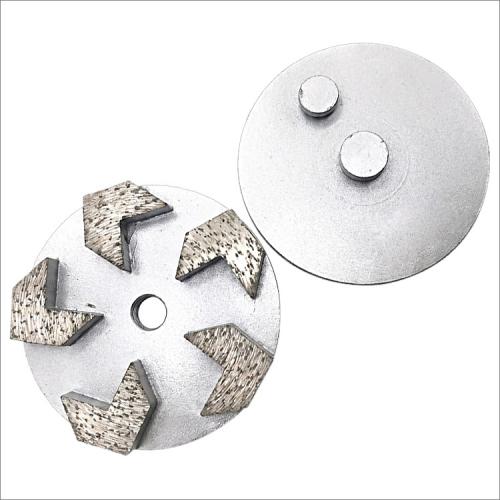

3 inches 76mm diamond disc concrete grinding wheel for STI floor grinders - arrow shape segments
For STI floor grinders
Diameter: 3 inches(76mm)
Segment size and No.: H12mm * 5pcs
Diamond grit: #6 - #200
With back shaft for "EG quick change"
Wet or dry use
3 inches 76mm diamond disc concrete grinding wheel for STI floor grinders - arrow shape diamond segments
The metal bond diamond disc with arrow shape segments is mainly used for all-purpose grinding on a wide range of substrates, concrete terrazzo floor preparation, professional for quick removal of epoxy, paint, glue, mastics, and coatings. It is suitable for STI Sase Stonekor PioneerEclipse floor grinders with polar magnetic 1- Pin system, etc.
It can be used dry, but will give better performance and life used wet.
We provide you with different metal bonds to fit different hardness of concrete, and a wide range of diamond grits can be chosen.
For coarse grinding(#6-#40), medium grinding(#50-#80), fine grinding(#100-#200).
Diamond grit No.: #6, #16, #20, #25, #30, #40, #50, #60, #80, #100, #120, #150, #170,#200.
Segment bond: soft, medium, hard.
| Code No. | Diameter | Segment Size/No. |
|
DGD-STI-02 |
3"(76mm) |
H12mm*5pcs |
The above specifications & photos are for reference, other specification may be available as per demand.
