3 inches diamond grinding disc - curved segments
Diameter: 3"(80mm)
Segment type: metal bond curved segments
Segment size: H10*3pcs
Diamond grit: #6-#200(coarse, medium, smooth)
Body: steel base
Using type: wet or dry
Production process: silver welded
Materials grinding: concrete,stone

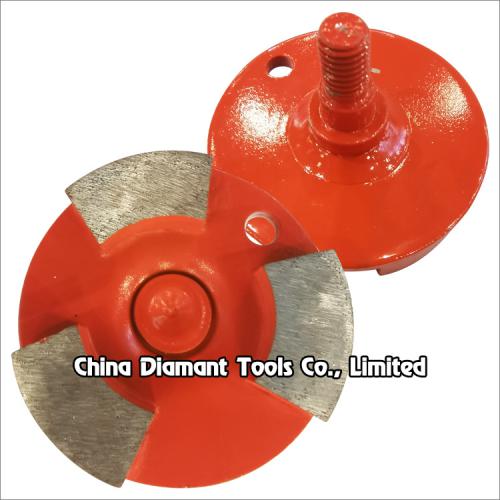

3"(80mm) diamond grinding disc - metal bond curved segments
This metal bond diamond grinding discs with 3pcs curved segments and threaded handle is used on hand use grinding machines for grinding abrasive materials such as stone concrete brick, etc., or used on some floor grinders for leveling, coarse grinding and fine grinding preparation or old floor renovation before polishing on various concrete, terrazzo, stone floors.
It can be used dry, but will give better performance and life used wet.
We provide you with different metal bonds to fit different hardness of concrete, and a wide range of diamond grits can be chosen.
For coarse grinding(#6-#40), medium grinding(#50-#80), fine grinding(#100-#200).
Diamond grit No.: #6, #16, #20, #25, #30, #40, #50, #60, #80, #100, #120, #150, #170,#200.
Segment bond: soft, medium, hard.
Shank size: M8, M10 or as per demand.
| Code No. | Diameter | Segment Size/No. | Grit |
|
DGD-07-01 |
3"(80mm) |
H10mm*3pcs |
#6 - #200 |
The above specifications & photos are for reference, other specification may be available as per demand.
