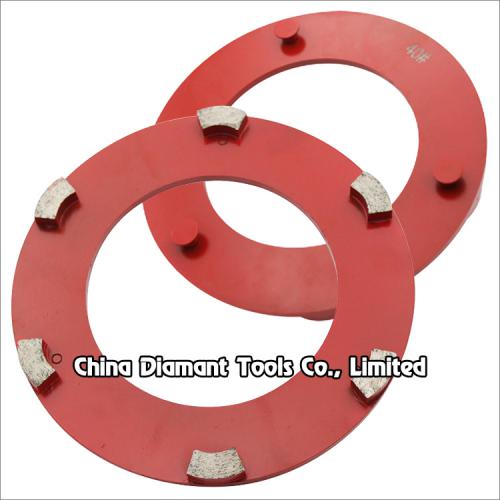

Diamond plate grinding disc for Bimack/kLinDex floor grinders - curved segments
Diameter: 240mm
Segment type: metal bond curved shape
Segment size: H10mm
Segment No.: 6 or 9pcs
Diamond grit: #6-#200(coarse, medium, smooth)
Body: steel base
Using type: wet or dry
Materials grinding: concrete,terrazzo floor
Diamond plate grinding disc for Bimack/kLinDex floor grinders - curved segments
This 240mm diamond grinding plate with 6 or 9pcs curved segments design fits to most of the single/double/three heads Bimack/kLinDex floor grinders in the market.
It is designed for removing hard epoxies and coatings, erasing concrete imperfections, leveling uneven spots or joints and smoothing rough or patched concrete terrazzo surfaces. It can be applied to large-size concrete, terrazzo, stone floor grinding, it has 6-9pcs or more bar shape diamond segments and it is very high efficient for grinding deep on the floor surface.
Generous 10mm deep diamond segments for long life.
It can be used dry, but will give better performance and life used wet.
We provide you with different metal bonds to fit different hardness of concrete, and a wide range of diamond grits can be chosen.
For coarse grinding(#6-#40), medium grinding(#50-#80), fine grinding(#100-#200).
Diamond grit No.: #6, #16, #20, #25, #30, #40, #50, #60, #80, #100, #120, #150, #170,#200.
Segment bond: soft, medium, hard.
| Code No. | Diameter | Segment Size/No. | Grit |
|
DGD-03-02-6 |
240mm |
H10mm*6pcs |
#6 - #200 |
| DGD-03-02-9 | 240mm |
H10mm*9pcs |
The above specifications & photos are for reference, other specification may be available as per demand.
