Diamond grinding cup wheels for concrete - 7 shape segments
Diameter: 4", 4.5", 5", 7"
Bore size: 22.23, M14, 5/8"-11
Segment thickness: 5mm
Segment No.: 6-10pcs(as per demand)
Bond type: soft, medium, hard
Grit: rough(#30/40), medium(#60/80), smooth(#100/120)
(Other grit such as #16, #20, #25 is possible available.)
Dry or wet use
Diamond grinding cup wheels for concrete - 7 shape segments
This type diamond grinding cup wheels with 7 shape segments are used for grinding various concrete or other masonry materials such as stone, terrazzo, bricks, etc., ideal for smoothing and shaping as well as stock removal.
It usually fits on angle grinder to grind areas that can't be reached with large floor grinders such as counter tops, walls, edges etc., and the designs of segments & steel base offer faster and more aggressive grinding with excellent dust removal for heavy-duty professional.
Welding type: capacity discharge welding or high frequency welding.

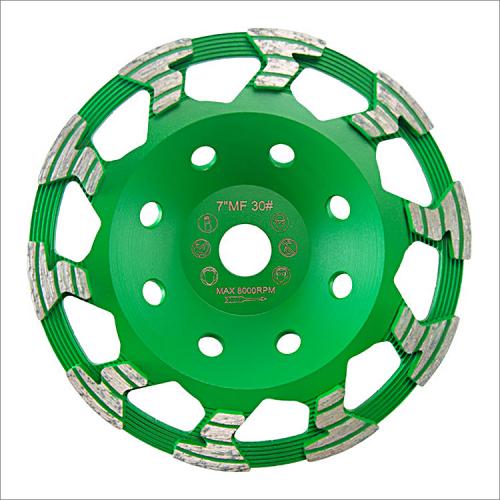

(The above wheel in the photo is capacity discharge welded.)
Diameter: 4", 4.5", 5", 7".
Bore size: 22.23, M14, 5/8"-11.
Segment thickness: 5mm.
Segment No.: 6-10pcs(as per demand)
Bond type: soft, medium, hard.
Grit: rough(#30/40), medium(#60/80), smooth(#100/120).
(Other grit such as #16, #20, #25 is possible available.)
Dry or wet use.
May be used on angle grinders or walk-behind floor machines.
| Code No. |
Diameter |
Segment Thickness |
| GCW-C48-105 |
105mm(4") |
5mm |
| GCW-C48-115 |
115mm(4.5") |
5mm |
| GCW-C48-125 |
125mm(5") |
5mm |
| GCW-C48-150 |
150mm(6") |
x |
| GCW-C48-180 | 180mm(7") | 5mm |
The above specifications & photos are for reference, other specification may be available as per demand.
