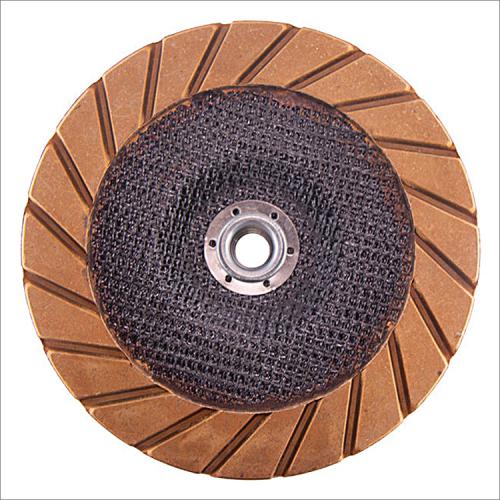

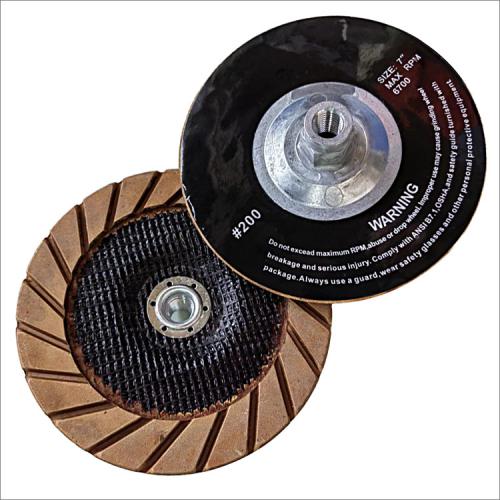

4 5 7 inches ceramic bond diamond grinding cup wheels for concrete stone granite edge finishing
Diameter: 4"(100mm), 5"(125mm), 7"(175mm)
Thickness: 3.0mm
Bore size: M14, 5/8"-11
Bond type: ceramic bond
Regular grit: #30, #50, #100, #200, #400
Dry use
4 5 7 inches ceramic bond diamond grinding cup wheels for concrete stone granite edge finishing
This turbo rim ceramic bond of 4 to 7 inches grinding wheels is a revolutionary design that improves the quality of edgework while reducing the scratches and gouging that metal cup wheels cause.
The wheels save much more
of time and eliminate the pain of doing edge grinding finishing
work, compared to traditional grinding wheels, the weight is light,
and easy to use.
May be used on most hand grinders and walk behind edge machines. Please review maximum operating speed marked on the wheel and compare it to your grinder's RPM, do not exceed the maximum operating speed of the wheel.
Diameter: 4"(100mm), 5"(125mm), 7"(175mm).
Thickness: 3.0mm.
Bore size: M14, 5/8"-11.
Bond type: ceramic bond.
Regular grit: #30, #50, #100, #200, #400.
Dry use.
| Code No. |
Diameter |
Diamond Grit |
| GCW-CB01-100 |
105mm(4") |
#30, #50, #100, #200, #400 |
| GCW-CB01-125 |
125mm(5") |
#30, #50, #100, #200, #400 |
| GCW-CB01-175 | 175mm(7") | #30, #50, #100, #200, #40010 |
The above specifications & photos are for reference, other specification may be available as per demand.
