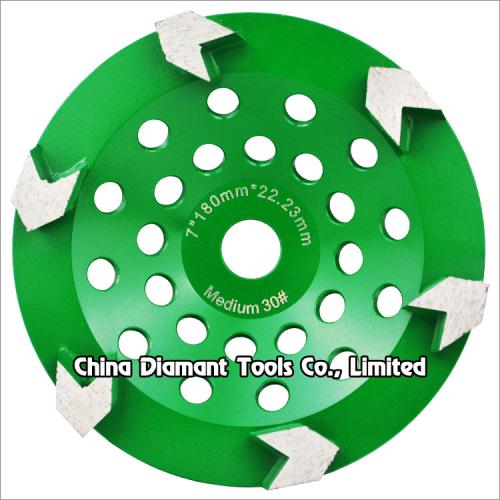

Diamond grinding cup wheels for concrete - big arrow segments

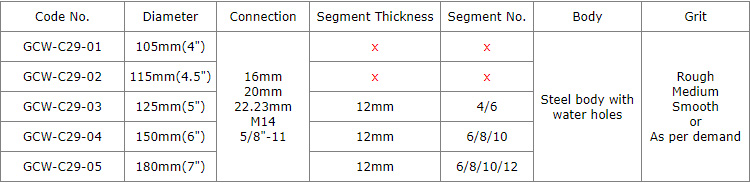

Diameter: 125mm,150mm,180mm
Connection bore: 20mm,22.23mm,M14,5/8"-11
Segment type: big arrow segment
Segment No.: 4-12pcs
Diamond grit: #30-#120
Body: steel base with water holes
Production process: silver welded

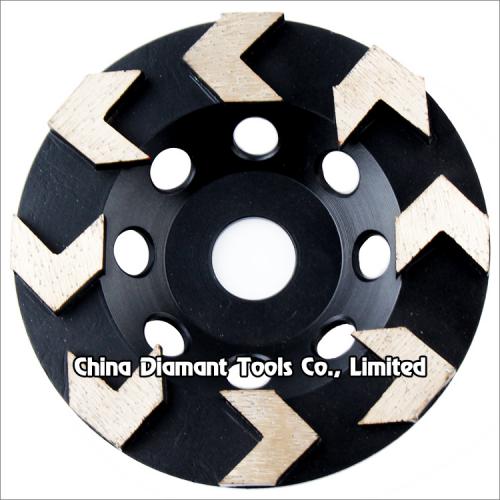

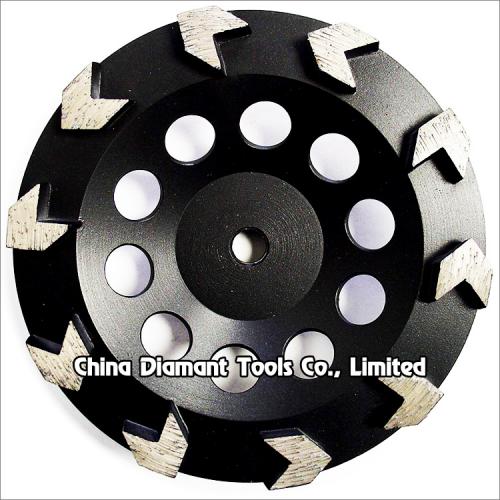

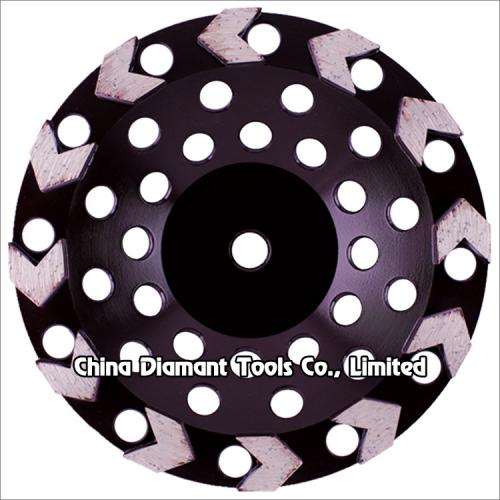

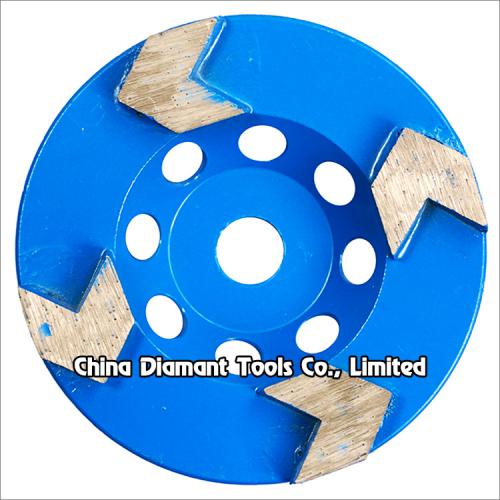

Diamond grinding cup wheels for concrete - big arrow segments
Diamond grinding cup wheels with big arrow segments are brazed with a high diamond count for long life grinding various concrete or other masonry materials such as stone, terrazzo, bricks, etc., ideal for smoothing and shaping as well as stock removal.
This type cup wheels with different quantity arrow segments gives a distinct advantage for speed grinding. Compared to other cup wheels with 5mm thickness segments, these 12mm height segments give too much more grinding life.
Diameter: 5"(125mm)-7"(180mm).
Welding method: high frequency silver welded.
Bond type: soft, medium, hard.
Regular grit: rough(#30/40), medium(#60/80), smooth(#100/120).
Dry or wet use.
May be used on angle grinders or floor grinders.
The above specifications & photos are for reference, other specification may be available as per demand.
