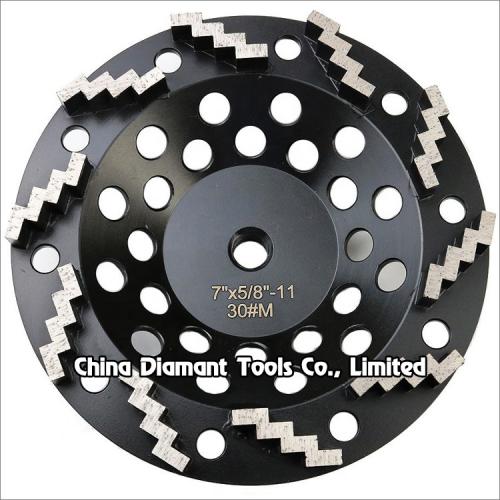

Diamond grinding cup wheels for concrete - double Z shape segments

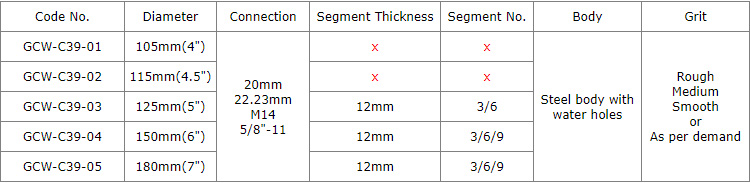

Diameter: 125mm,150mm,180mm
Connection bore: 20mm,22.23mm,M14,5/8"-11
Segment type: 3-9pcs double Z shape
Diamond grit: #30-#120

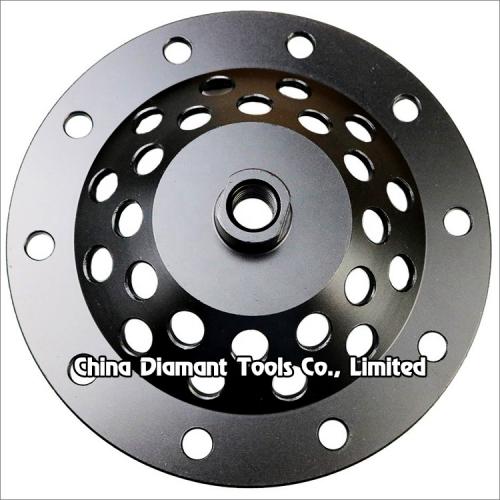

Body: steel base with water holes
Production process: silver welded

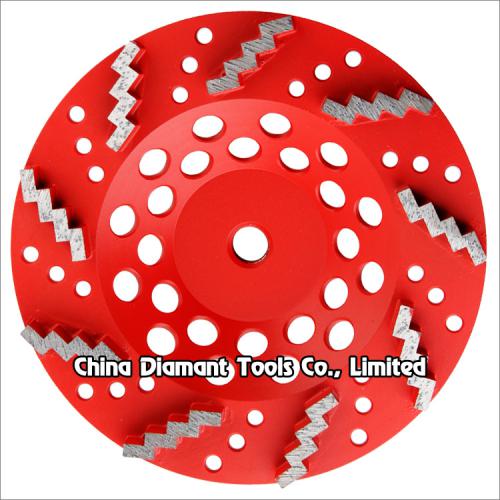

Diamond grinding cup wheels for concrete - double Z shape segments
Diamond grinding cup wheels with double Z shape segments for grinding various concrete or other masonry materials such as stone, terrazzo, bricks, etc., ideal for smoothing and shaping as well as stock removal.
This type cup wheels with 3-9pcs segments gives a distinct advantage for speed grinding. Compared to other cup wheels with 5mm thickness segments, these 12mm height segments give too much more grinding life.
Diameter: 5"(125mm)-7"(180mm).
Welding method: high frequency silver welded.
Bond type: soft, medium, hard.
Regular grit: rough(#30/40), medium(#60/80), smooth(#100/120).
Dry or wet use.
May be used on angle grinders or floor grinders.
The above specifications & photos are for reference, other specification may be available as per demand.
