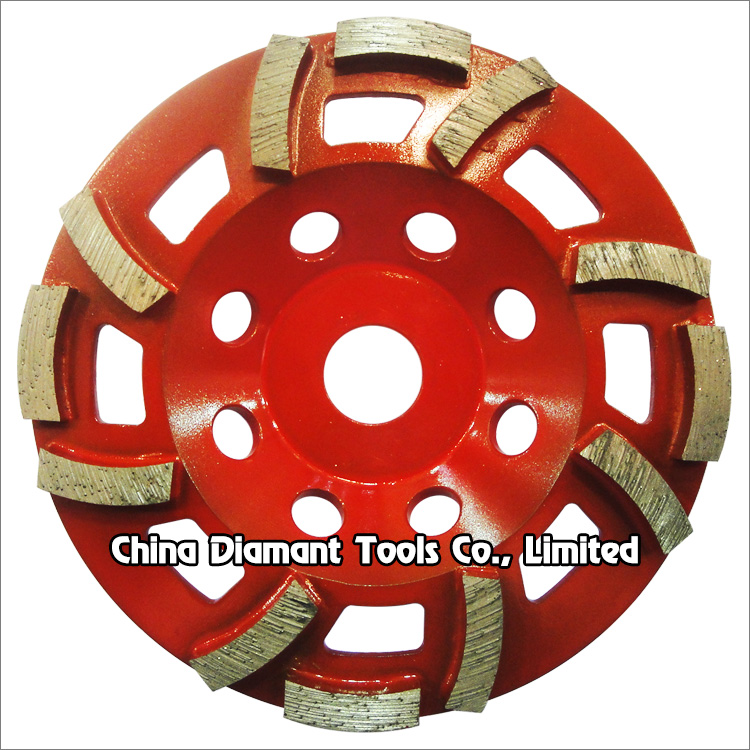

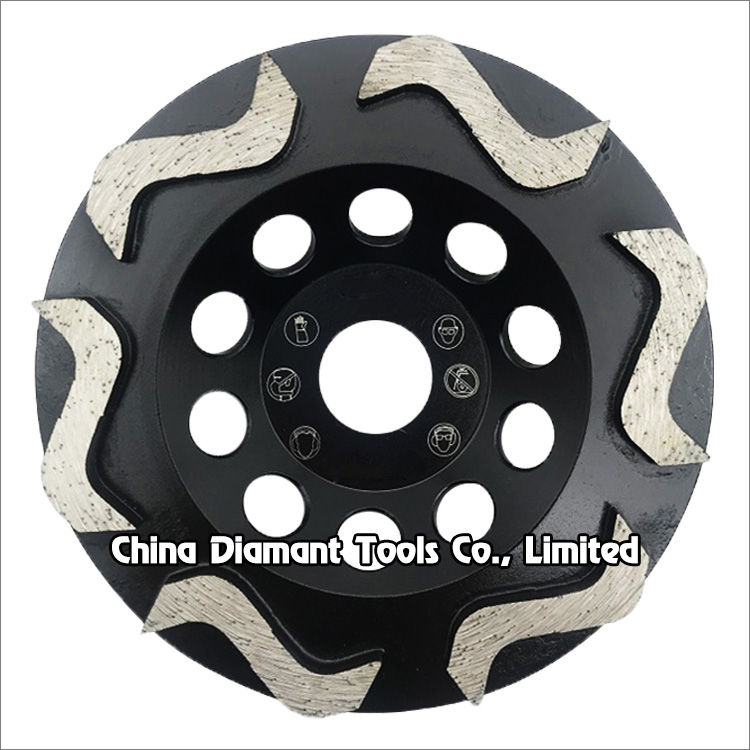

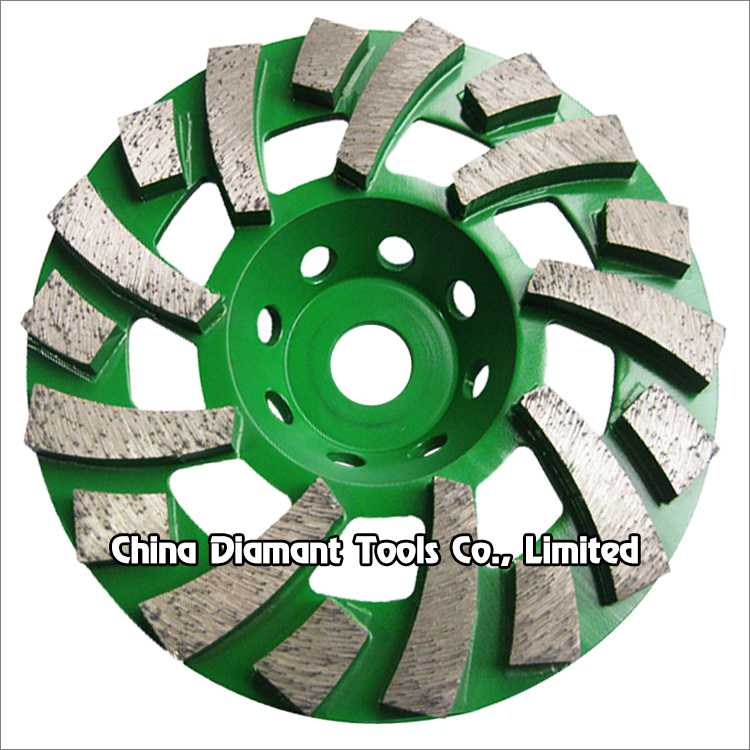

Diamond grinding cup wheels for concrete - big spiral segments

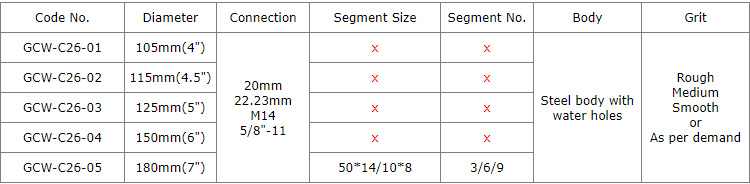

Diameter: 180mm
Connection bore: 20mm,22.23mm,M14,5/8"-11
Segment type: big spiral segment
Segment No.: 3/6/9pcs
Diamond grit: #30-#120
Body: steel base
Production process: silver welded

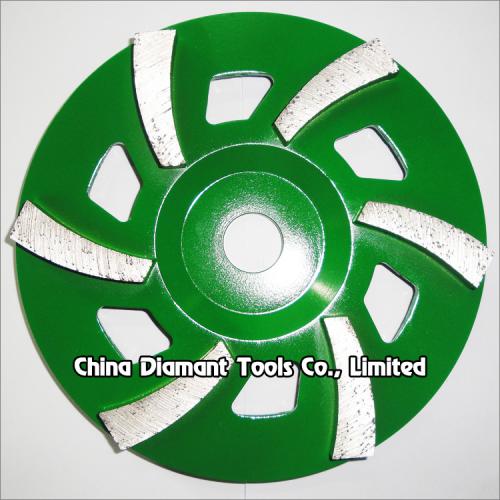

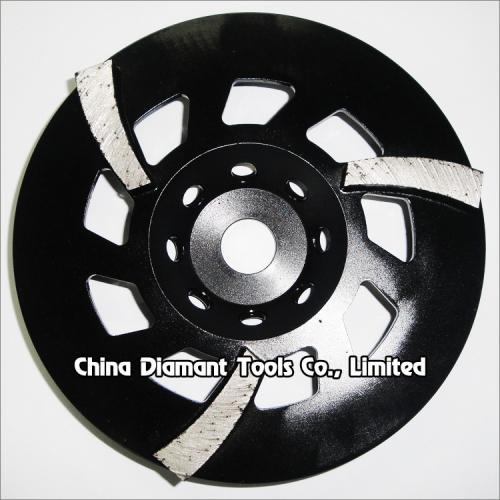

Diamond grinding cup wheels for concrete - big spiral segments
Diamond grinding cup wheels with big spiral segments for grinding various concrete or other masonry materials such as stone, terrazzo, bricks, etc., ideal for smoothing and shaping as well as stock removal.
This type cup wheels with with 9 or 6 or 3pcs spiral segments give this cup wheel a distinct advantage when grinding concrete. It is sintered turbo wheels that feature special cooling holes to reduce core heat for optimum performance during aggressive grinding and stock removal.
Diameter: 7"(180mm).
Welding method: high frequency silver welded.
Bond type: soft, medium, hard.
Regular grit: rough(#30/40), medium(#60/80), smooth(#100/120).
Dry or wet use.
May be used on angle grinders or floor grinders.
The above specifications & photos are for reference, other specification may be available as per demand.
