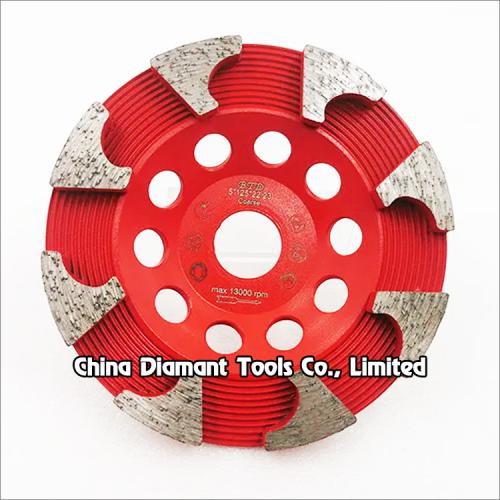

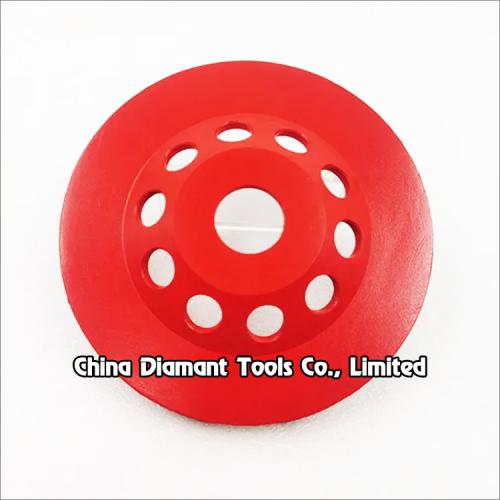

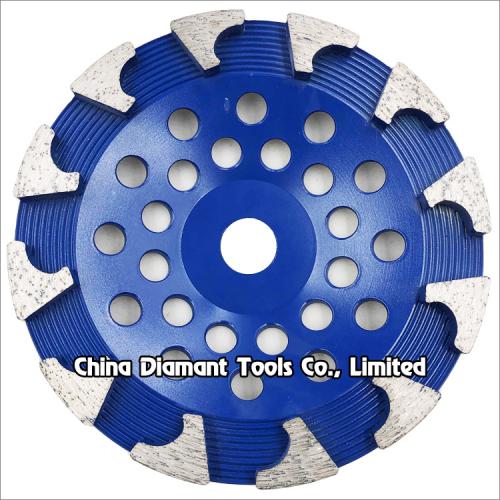

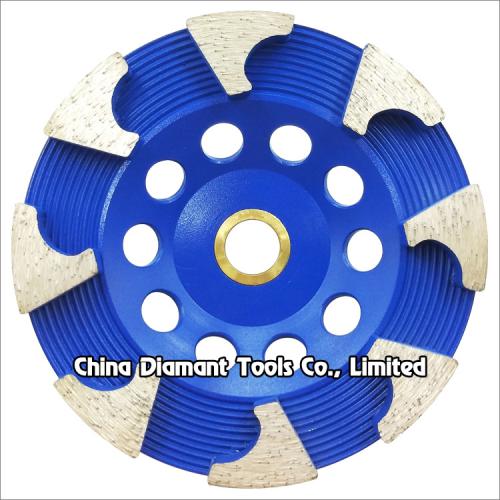

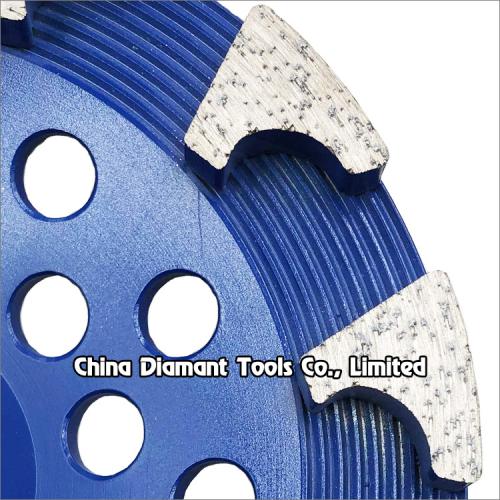

Diamond grinding cup wheels for concrete - boots shape segments
Diameter: 125mm,150mm,180mm
Connection bore: 20mm,22.23mm,M14,5/8"-11
Segment type: 8-12pcs boots shape
Diamond grit: #30-#120
Body: steel base with water holes
Production process: silver welded or capacity discharge welded
Diamond grinding cup wheels for concrete - boots shape segments
Diamond grinding cup wheels with boots shape segments are brazed with a high diamond count for long life grinding various concrete or other masonry materials such as stone, terrazzo, bricks, etc., ideal for smoothing and shaping as well as stock removal, the boots shape segments are specifically engineered to produce a clean, finished surface with fast, smooth grinding action.
Diameter: 5"(125mm)-7"(180mm).
Welding method: Capacity discharge welded. High frequency silver welded is available with regular flat steel base.
Bond type: soft, medium, hard.
Regular grit: rough(#30/40), medium(#60/80), smooth(#100/120).
Dry or wet use.
May be used on angle grinders or floor grinders.
The above specifications & photos are for reference, other specification may be available as per demand.
