Diamond grinding cup wheels for concrete - big curved segments

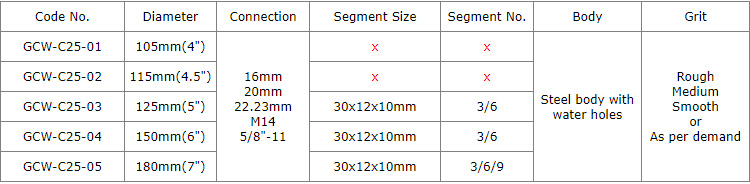

Diameter: 125mm,150mm,180mm
Connection bore: 20mm,22.23mm,M14,5/8"-11
Segment type: turbo row
Segment No.: 3/6/9pcs
Diamond grit: #30-#120
Body: steel base
Production process: silver welded

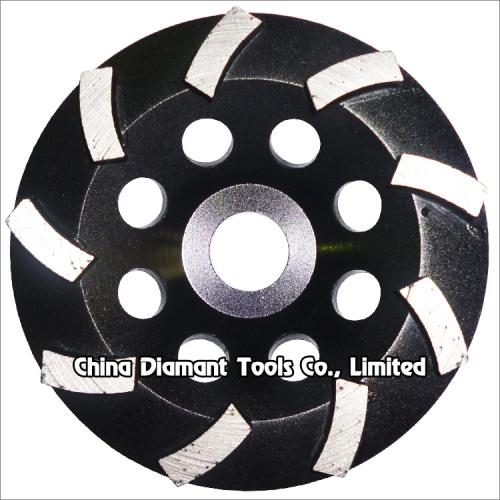

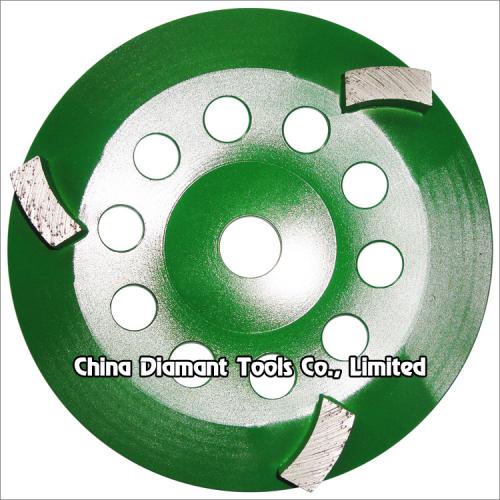

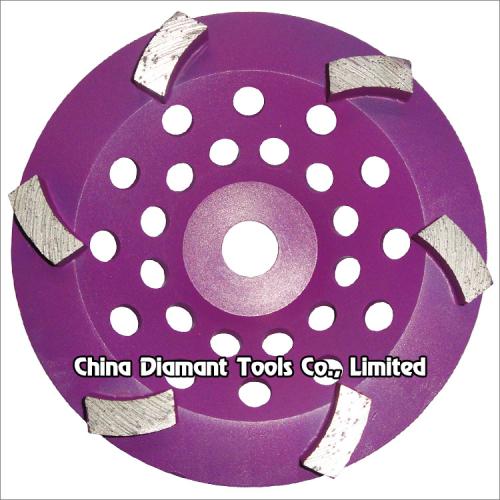

Diamond grinding cup wheels for concrete - big curved segments
Diamond grinding cup wheels with big curved segments for grinding various concrete or other masonry materials such as stone, terrazzo, bricks, etc., ideal for smoothing and shaping as well as stock removal.
This type cup wheels with 9 or 6 or 3pcs big curved segments gives a distinct advantage for speed grinding. Compared to other cup wheels with 5mm thickness segments, these 12 width and 10mm height segments give too much more grinding life.
Diameter: 5"(125mm)-7"(180mm).
Welding method: high frequency silver welded.
Bond type: soft, medium, hard.
Regular grit: rough(#30/40), medium(#60/80), smooth(#100/120).
Dry or wet use.
May be used on angle grinders or floor grinders.
The above specifications & photos are for reference, other specification may be available as per demand.
