Diamond grinding cup wheels for concrete - raindrop segments
Diameter: 125mm,150mm,180mm
Connection bore: 20mm,22.23mm,M14,5/8"-11
Segment type: 8-12pcs raindrop segments
Diamond grit: #30-#120

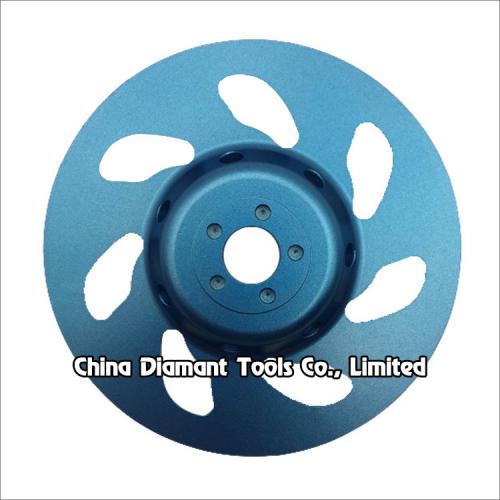

Body: steel base with water holes
Production process: silver welded or capacity discharge welded

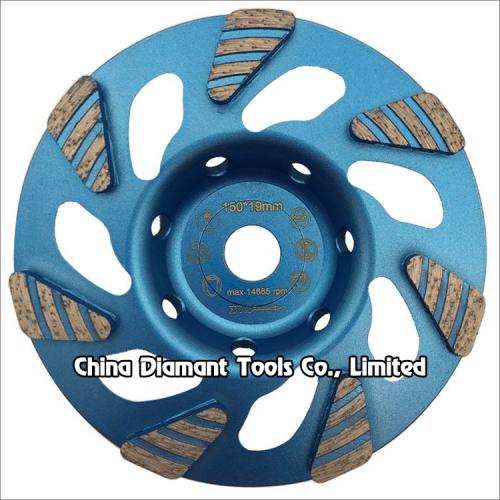

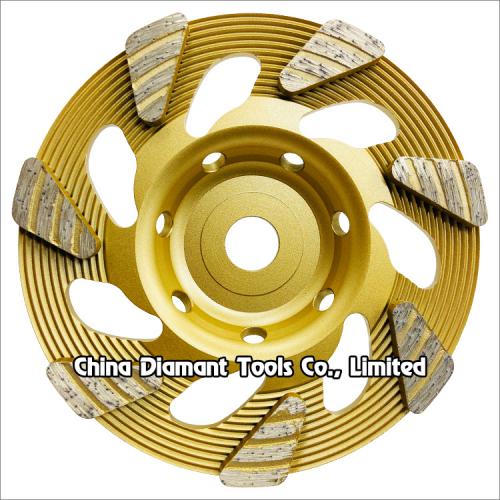

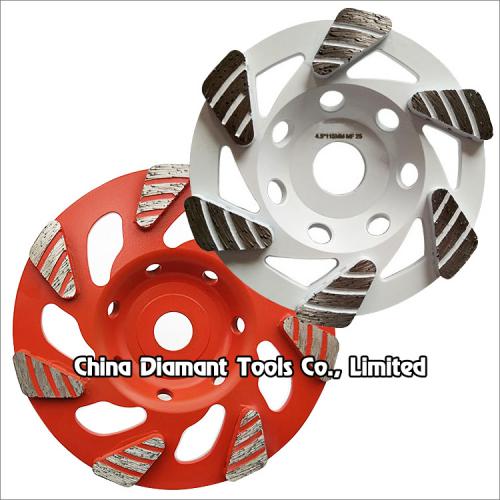

Diamond grinding cup wheels for concrete - raindrop segments
Diamond grinding cup wheels with raindrop shape segments are brazed with a high diamond count for long life grinding various concrete or other masonry materials such as stone, terrazzo, bricks, etc., ideal for smoothing and shaping as well as stock removal.
Diameter: 5"(125mm)-7"(180mm).
Welding method: Capacity discharge welded. High frequency silver welded is available with regular flat steel base.
Bond type: soft, medium, hard.
Regular grit: rough(#30/40), medium(#60/80), smooth(#100/120).
Dry or wet use.
May be used on angle grinders or floor grinders.
The above specifications & photos are for reference, other specification may be available as per demand.
