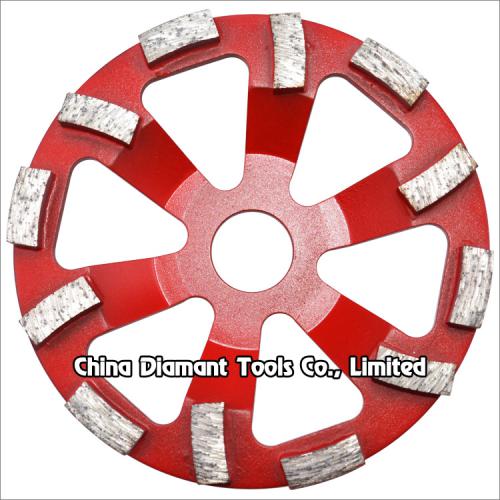

Diamond grinding cup wheels for concrete - normal curved segments
Diameter: 5"(125mm), 6"(150mm), 7"(180mm)
Segment thickness: 5mm
Bore size: 20mm, 22.23mm, M14, 5/8"-11
Bond type: soft, medium, hard
Regular grit: rough(#30/40), medium(#60/80), smooth(#100/120)
(Other grit such as #16, #20, #25 is possible available)
Welding method: high frequency welded
Dry or wet use
Diamond grinding cup wheels with arrow segments for grinding various concrete or other masonry materials such as stone, terrazzo, bricks, etc., ideal for smoothing and shaping as well as stock removal.
Diameter: 5"(125mm), 6"(150mm), 7"(180mm).
Segment thickness: 5mm.
Bore size: 20mm, 22.23mm, M14, 5/8"-11.
Welding method: high frequency welded.
Bond type: soft, medium, hard.
Regular grit: rough(#30/40), medium(#60/80), smooth(#100/120).
(Other grit such as #16, #20, #25 is possible available)
Dry or wet use.
May be used on angle grinders or floor grinders.
| Code No. |
Diameter |
Segment Thickness | Segment No. |
| GCW-C47-01 |
105mm(4") |
x |
x |
| GCW-C47-02 |
115mm(4.5") |
x | x |
| GCW-C47-03 |
125mm(5") |
5mm | 10 |
| GCW-C47-04 |
150mm(6") |
5mm | 12 |
| GCW-C47-05 | 180mm(7") | 5mm | 14 |
The above specifications & photos are for reference, other specification may be available as per demand.
