Diamond grinding cup wheels for concrete - fanlike segments

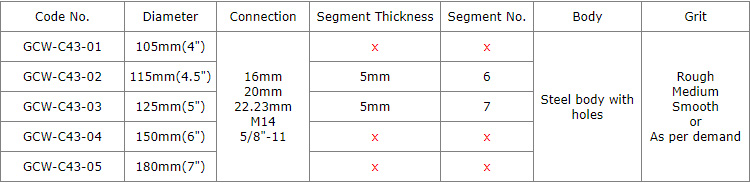

item No : GCW-C43
Diameter: 115mm,125mm
Connection bore: 20mm,22.23mm,M14,5/8"-11
Segment type: 6-7pcs fanlike shape
Diamond grit: #30-#120
Body: steel base with holes
Production process: capacity discharge welded
Diameter: 115mm,125mm
Connection bore: 20mm,22.23mm,M14,5/8"-11
Segment type: 6-7pcs fanlike shape
Diamond grit: #30-#120
Body: steel base with holes
Production process: capacity discharge welded

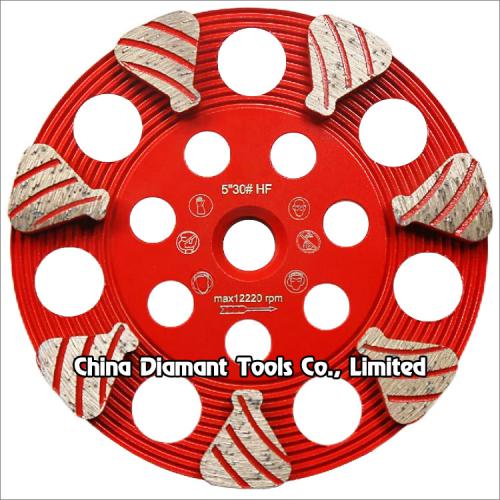

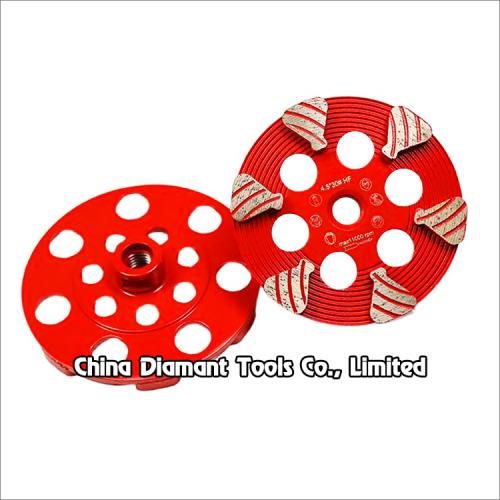

Diamond grinding cup wheels for concrete - fanlike segments
Diamond grinding cup wheels with fanlike segments are brazed with a high diamond count for long life grinding various concrete or other masonry materials such as stone, terrazzo, bricks, etc., ideal for smoothing and shaping as well as stock removal.
Welding method: Capacity discharge welded. High frequency silver welded is available with regular flat steel base.
Bond type: soft, medium, hard.
Regular grit: rough(#30/40), medium(#60/80), smooth(#100/120).
Dry or wet use.
May be used on angle grinders or floor grinders.
The above specifications & photos are for reference, other specification may be available as per demand.
