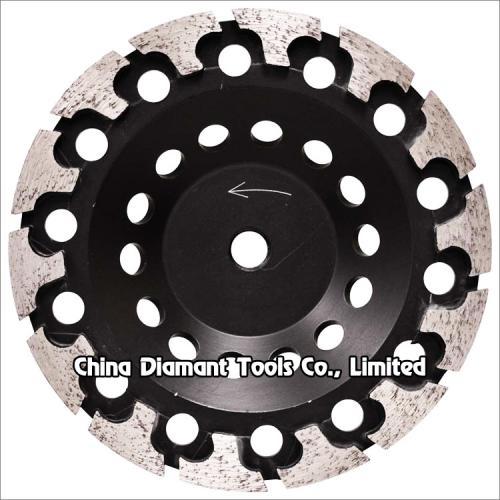

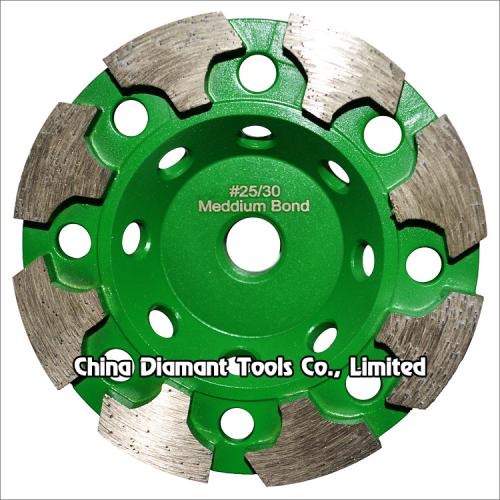

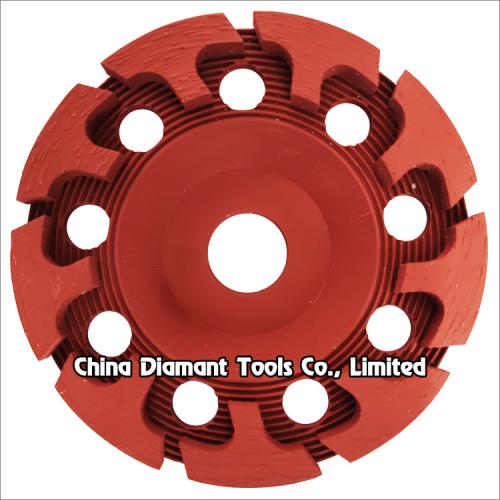

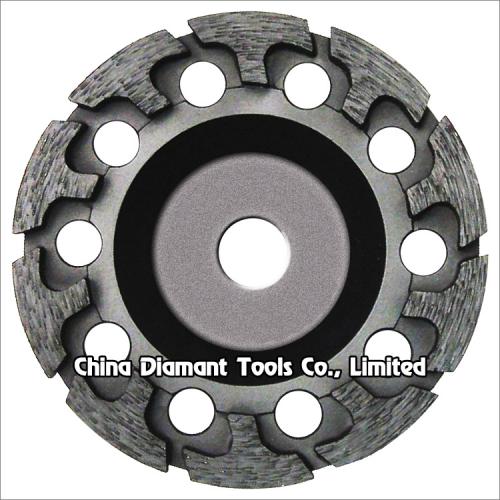

Diamond grinding cup wheels for concrete - T shape segments

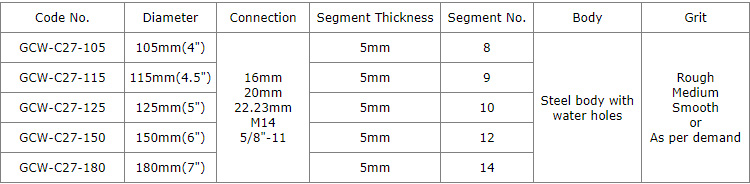

Diameter: 105mm,115mm,125mm,150mm,180mm
Connection bore: 20mm,22.23mm,M14,5/8"-11
Segment type: T shape segment
Segment No.: 8-14pcs
Diamond grit: #30-#120
Body: steel base
Production process: silver welded
Diamond grinding cup wheels for concrete - T shape segments
Diamond grinding cup wheels with T shape segments are brazed with a high diamond count for long life grinding various concrete or other masonry materials such as stone, terrazzo, bricks, etc., ideal for smoothing and shaping as well as stock removal, the T segments are specifically engineered to produce a clean, finished surface with fast, smooth grinding action.
Diameter: 4"(105mm)-7"(180mm).
Welding method: high frequency silver welded or hot press sintered. Capacity discharge welded wheel is available.
Bond type: soft, medium, hard.
Regular grit: rough(#30/40), medium(#60/80), smooth(#100/120).
Dry or wet use.
May be used on angle grinders or floor grinders.
The above specifications & photos are for reference, other specification may be available as per demand.
