PCD grinding cup wheels for concrete floor - metal bond curved PCD segments

Item No. : GCW-PCD14
Diameter: 4" - 10"
Segment size: 40x10x10mm
Segment No.: 3-18pcs
Bore size: 16mm, 20mm, 22.23mm, M14, 5/8"-11
Dry or wet use

Inquiry Now

Detailed Description

Inquiry Now

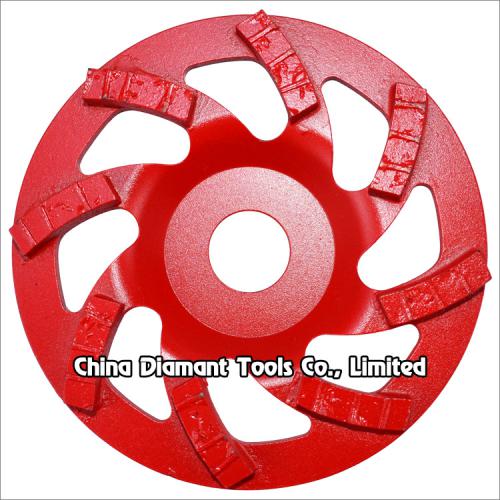

PCD grinding cup wheels for concrete floor - metal bond curved PCD segments

This PCD grinding cup wheel with metal bond curved PCD segments is a perfect tool for sharp removal of heavy epoxy, coatings, mastic, glues or even fast stock removal of concrete, which is designed for fast removing hard and tacky surfaces including: waterproofing membrane, pool deck coating, thick mastic, old and new epoxy coating, paint, VCT/carpet glues, etc., usually the PCD segment scrapes and rips the toughest coating from the surface quickly and effectively with no loading up.

Diameter: 105mm(4"), 115mm(4.5"), 125mm(5"), 150mm(6"), 180mm(7"), 200mm(8"), 250mm(10").

Segment size: 40x10x10mm.

Segment No.: 3-18pcs.

Bore size: 16mm, 20mm, 22.23mm, M14, 5/8"-11.

Dry or wet use.

May be used on angle grinders or floor grinders.

Code No.	Diameter	PCD No.
GCW-PCD14-105	105mm(4")	3
GCW-PCD14-115	115mm(4.5")	3
GCW-PCD14-125	125mm(5")	5
GCW-PCD14-150	150mm(6")	7
GCW-PCD14-180	180mm(7")	8
GCW-PCD14-200	200mm(8")	12
GCW-PCD14-250	250mm(10")	18

The above specifications & photos are for reference, other specification may be available as per customer's demand.
