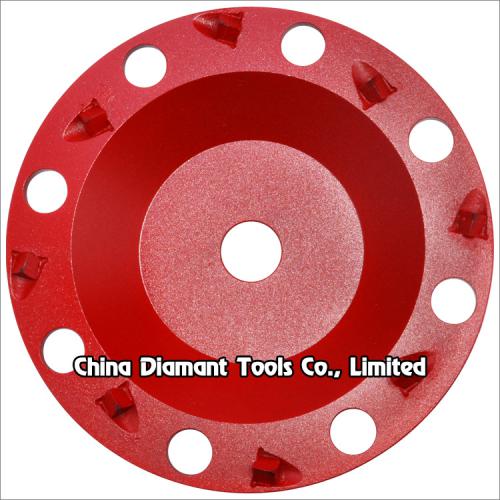

PCD grinding cup wheels for concrete floor - single row 1/4 or 1/3 round PCD segments

Item No. : GCW-PCD12

Diameter: 4" - 10"

PCD size: 1/4 round or 1/3 round

PCD No.: 4-22pcs

Bore size: 16mm, 20mm, 22.23mm, M14, 5/8"-11

Dry or wet use

May be used on angle grinders or floor grinders.

Inquiry Now

Detailed Description

Inquiry Now

PCD grinding cup wheels for concrete floor - 1/4 or 1/3 round PCD segments

PCD cup wheel is a perfect tool for sharp removal of heavy epoxy, coatings, mastic, glues or even fast stock removal of concrete, which is designed for fast removing hard and tacky surfaces including: waterproofing membrane, pool deck coating, thick mastic, old and new epoxy coating, paint, VCT/carpet glues, etc., usually the PCD segment scrapes and rips the toughest coating from the surface quickly and effectively with no loading up.

Manufactured from the high quality polycrystalline diamonds. This tools scraping action eliminates gumming up of segments and maximizes production.

Diameter: 105mm(4"), 115mm(4.5"), 125mm(5"), 150mm(6"), 180mm(7"), 200mm(8"), 250mm(10").

PCD size: 1/4 round or 1/3 round.

PCD No.: 4-22pcs.

Bore size: 16mm, 20mm, 22.23mm, M14, 5/8"-11.

Dry or wet use.

May be used on angle grinders or floor grinders.

Code No.	Diameter	PCD No.
GCW-PCD12-105	105mm(4")	4
GCW-PCD12-115	115mm(4.5")	4/5
GCW-PCD12-125	125mm(5")	5/6
GCW-PCD12-150	150mm(6")	6/8
GCW-PCD12-180	180mm(7")	8/10
GCW-PCD12-200	200mm(8")	10/12
GCW-PCD12-250	250mm(10")	10/12

The above specifications & photos are for reference, other specification may be available as per customer's demand.

PCD grinding cup wheels for concrete floor - single row 1/4 or 1/3 round PCD segments
