10 inches 250mm diamond grinding discs floor plates for concrete - arrow segments
Diameter: 10"(250mm)
Segment type: metal bond
Segment size: H13mm
Segment No.: 10-20pcs
Diamond grit: #6-#200(coarse, medium, smooth)
Bond: soft, medium, hard
Using type: wet or dry
Materials grinding: concrete,terrazzo floor

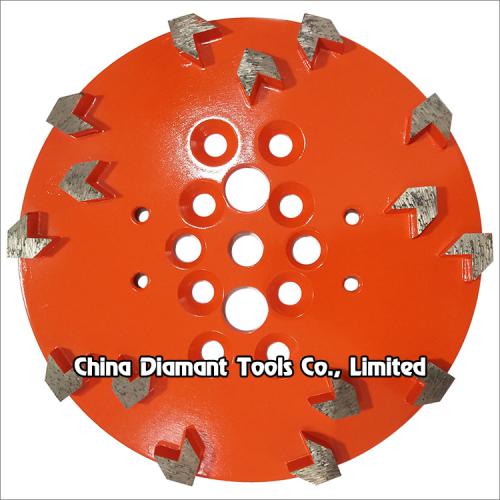

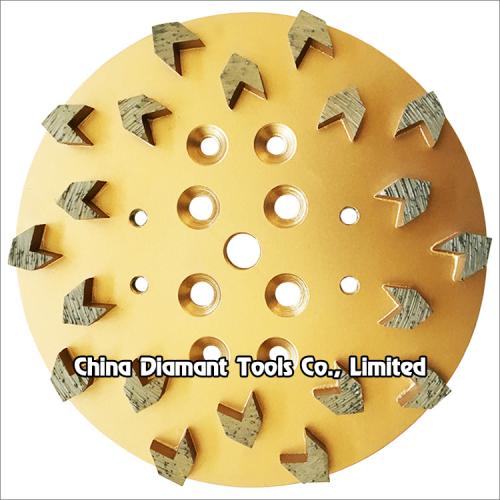

10"(250mm) 12"(300mm) diamond discs floor grinding plates for concrete - arrow segments
This type diamond discs floor grinding plates with arrow segments & multi-hole fit to most of the single head grinder in the market, such as Blastrac/Trelawny grinders.
They are designed for removing hard epoxies and coatings, erasing concrete imperfections, leveling uneven spots or joints and smoothing rough or patched concrete surfaces. It has 10-20pcs arrow shape diamond segments and it is very high efficient for grinding deep on the concrete terrazzo surface.
They can be used dry, but will give better performance and life used wet.
Generous 15mm deep diamond segments for long life.
We provide you with different metal bonds to fit different hardness of concrete, and a wide range of diamond grits can be chosen.
For coarse grinding(#6-#40), medium grinding(#50-#80), fine grinding(#100-#200).
Diamond grit No.: #6, #16, #20, #25, #30, #40, #50, #60, #80, #100, #120, #150, #170,#200.
Segment bond: soft, medium, hard.
|
Code No. |
Diameter |
Segment Size/No. |
Grit No. |
|
DGD-01-03-250-10 |
10"(250mm) |
H15mm*10pc |
#6 - #200 |
| DGD-01-03-250-15 |
10"(250mm) |
H15mm*15pc | |
| DGD-01-03-250-20 | 10"(250mm) | H15mm*20pc | |
|
DGD-01-03-300-10 |
12"(300mm) | H15mm*10pc | |
| DGD-01-03-300-15 | 12"(300mm) | H15mm*15pc | |
| DGD-01-03-300-20 | 12"(300mm) | H15mm*20pc |
The above specifications & photos are for reference, other specification may be available as per demand.
