Diamond wedge grinding block for concrete

item No : DGT-O-02
Segment type: metal bond
Segment size: 40x10x10mm*4pcs
Diamond grit: #6-#200(coarse, medium, smooth)
Body: steel base
Production process: high-frequency welded
Materials grinding: concrete,terrazzo floor

Inquiry Now

Detailed Description

Inquiry Now

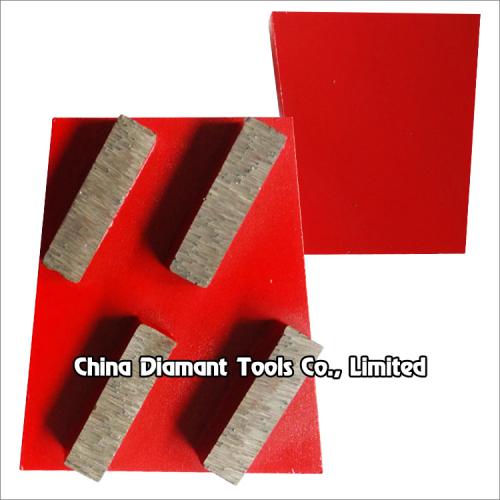

Diamond grinding wedge block for concrete floor

Diamond wedge grinding block with 4pcs segments for rough leveling and grinding of concrete terrazzo stone floor, such as underground parking lot, factory floor, etc., to remove the attachment on its surface.

Metal bond diamond segment has high strength, excellent wear resistance, and a low friction coefficient, it also has high grinding efficiency and low grinding force generates less heat in the grinding process.

We provide you with different metal bonds to fit different hardness of concrete, and a wide range of diamond grits can be chosen.

For coarse grinding(#6-#40), medium grinding(#50-#80), fine grinding(#100-#200).

Diamond grit No.: #6, #16, #20, #25, #30, #40, #50, #60, #80, #100, #120, #150, #170,#200.

Segment bond: soft, medium, hard.
