Diamond saw blades for concrete cutting - laser welded, straight turbo segments
Diameter: 105mm-1200mm
Bore: 20/22.23/50/60mm
Segment height: 10/12/15mm
Segment type: straight turbo segments
Production process: laser welded

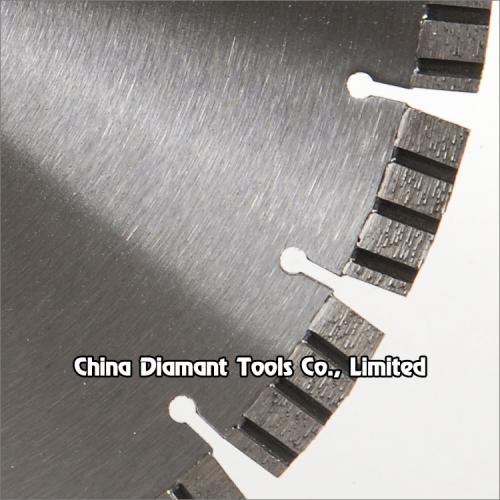

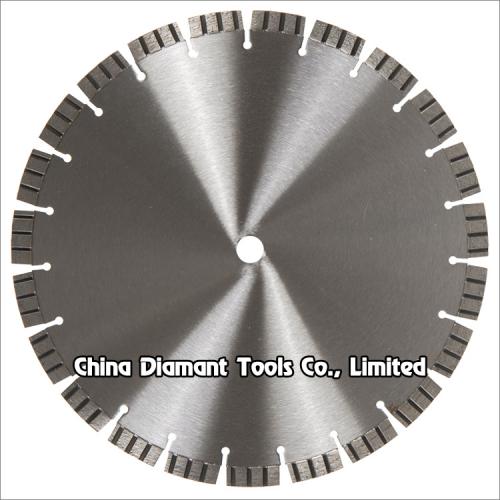

Diamond saw blades for concrete cutting - laser welded, straight turbo segments
Diamond saw blades laser welded with straight turbo segments designed for cutting various concretes such as green concrete, cured concrete, concrete slabs and pipes, etc., also for cutting reinforced concrete such as road, bridge, etc.
Dry or wet use, water coolant is benefit for longer cutting life.
Used on: angle grinders, high speed power saws, masonry saws, walk behind saw, handheld saw machines.
Diameter: 4"(105mm)-48"(1200mm), segment height: 10mm, 12mm, 15mm.
Bore size: 20mm, 22.23mm, 25.4mm, 50mm, 60mm or as per demand.
Welding method: Laser welded.
| Code No. |
Diameter (mm/inch) |
Segment Size (mm) |
Segment No. (pcs/set) |
|
SBC-02-01 |
105mm(4") |
40x2.2x10 |
8 |
| SBC-02-02 | 115mm(4.5") |
40x2.2x10 |
9 |
| SBC-02-03 | 125mm(5") |
40x2.2x10 |
10 |
| SBC-02-04 | 150mm(6) |
40x2.2x10 |
12 |
| SBC-02-05 | 180mm(7) |
40x2.4x10 |
14 |
| SBC-02-06 | 200mm(8") |
40x2.8x10 |
16 |
| SBC-02-07 | 230mm(9") |
40x2.8x10 |
18 |
| SBC-02-08 |
250mm(10") |
40x3.0x10 |
18 |
| SBC-02-09 |
300mm(12") |
40x3.0x10/12/15 |
21 |
| SBC-02-10 |
350mm(14") |
40x3.2x10/12/15 |
24 |
| SBC-02-11 |
400mm(16") |
40x3.6x10/12/15 |
28 |
| SBC-02-12 |
450mm(18") |
40x4.0x10/12/15 |
32 |
| SBC-02-13 |
500mm(20") |
40x4.2x10/12/15 |
36 |
| SBC-02-14 |
600mm(24") |
40x4.6x10/12/15 |
42 |
| SBC-02-15 |
650mm(26") |
40x4.6x10/12/15 |
46 |
| SBC-02-16 |
700mm(28") |
40x4.6x10/12/15 |
50 |
| SBC-02-17 |
750mm(30") |
40x4.8x10/12/15 |
54 |
| SBC-02-18 |
800mm(32") |
40x4.8x10/12/15 |
57 |
| SBC-02-19 |
900mm(36") |
40x4.8x10/12/15 |
52 |
| SBC-02-20 |
1000mm(40") |
40x5.2x10/12/15 |
58 |
| SBC-02-21 |
1050mm(42") |
40x5.2x10/12/15 |
60 |
| SBC-02-22 |
1200mm(48") |
40x5.2x10/12/15 |
70 |
The above specifications & photos are for reference, other specification may be available as per demand.
