Diamond crack chaser blades for concrete block stone cutting
Diameter: 105mm-200mm
Bore: 20/22.23mm
Segment size: W6.4/9.5xH12.7mm
Segment type: cuspate top(roof) shape
Production process: hot-press sintered or laser welded

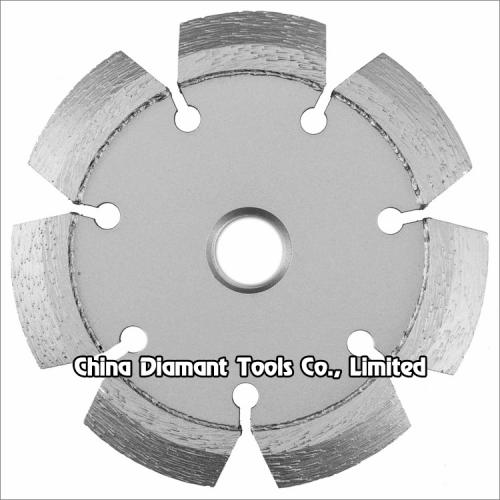

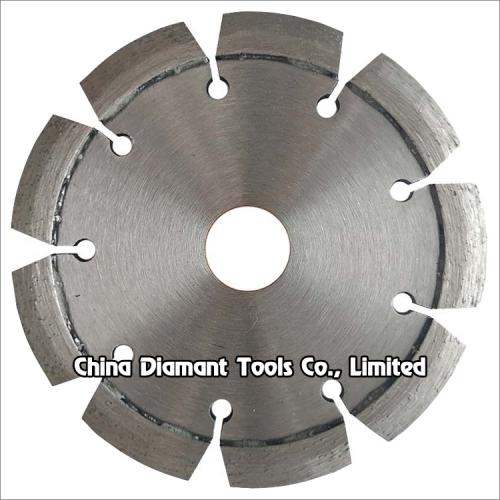

Diamond crack chaser blades for concrete block stone cutting
Diamond crack chaser blades are hot sintered or brazed and specifically engineered to efficiently clean out and repair cracks and/or imperfections on a wide range of masonry surfaces.

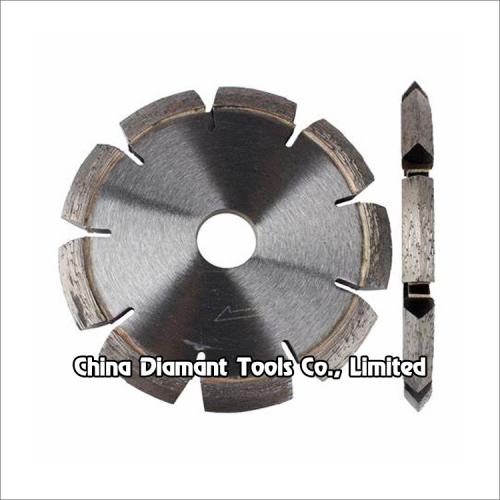

The blades with V-shaped(roof) segments are suitable for working on routing, cleaning, and repairing cracks or joints in concrete and most building materials.

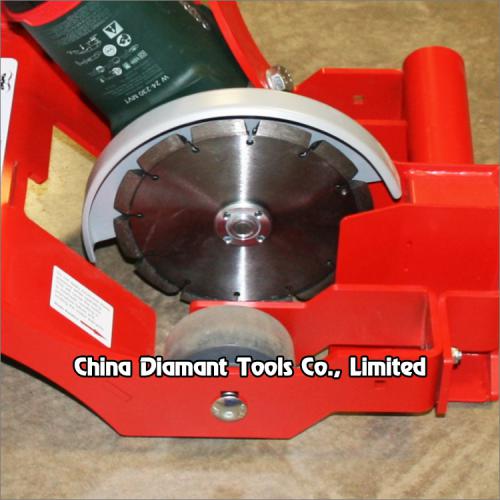

They are used with angle grinders, circular saws and tuck pointers for cutting green concrete, block, concrete, hard concrete, pavers and stone, also big size Crack Chaser blade can be mounted on walk-behind saws for big concrete repair and crack repair jobs.
Dry or wet use!
Our crack chaser blades won’t chip or crack material, and high concentration of diamond provides extra long life.
Bore size: 15.88mm(5/8"), 22.23mm(7/8"), or as per demand.
Hot press sintered, or laser welded.
|
Code No. |
Diameter |
Segment Width (mm) |
Segment Height (mm) |
|
DCCB-02-105 |
105mm(4") |
6.35mm(0.250") or 9.50mm(0.375") |
12.7mm |
|
DCCB-02-115 |
115mm(4.5") |
12.7mm |
|
|
DCCB-02-125 |
125mm(5") |
12.7mm |
|
|
DCCB-02-150 |
150mm(6") |
12.7mm |
|
|
DCCB-02-180 |
180mm(7") |
12.7mm |
|
|
DCCB-02-200 |
200mm(8") |
12.7mm |
The above specifications & photos are for reference, other specification may be available as per demand.
