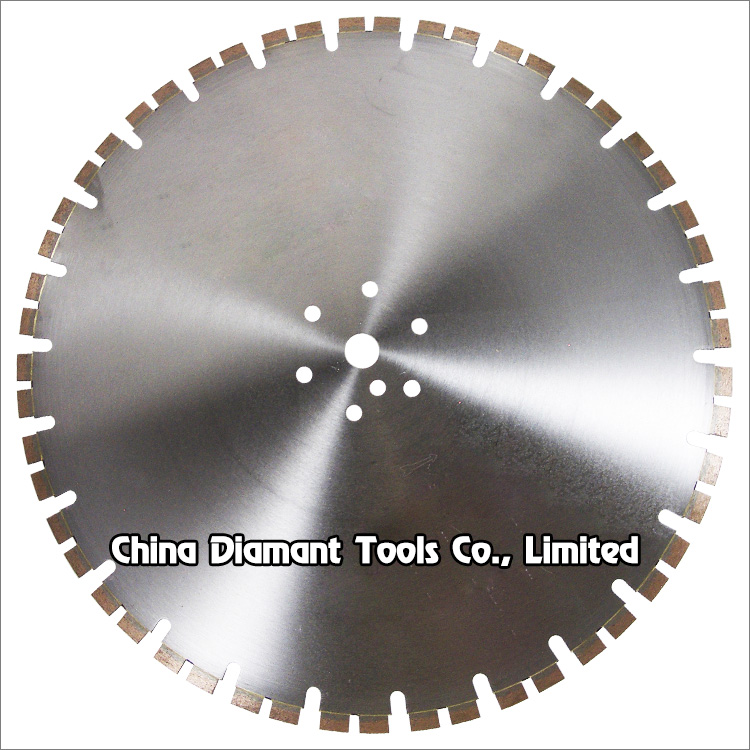

Arix diamond saw blades for concrete wall cutting - diagonal teeth with matrix segments
Diameter: 600mm-1200mm
Bore: 25.4-80mm
Segment height: 13.5mm
Segment type: diagonal matrix segments
Production process: laser welding

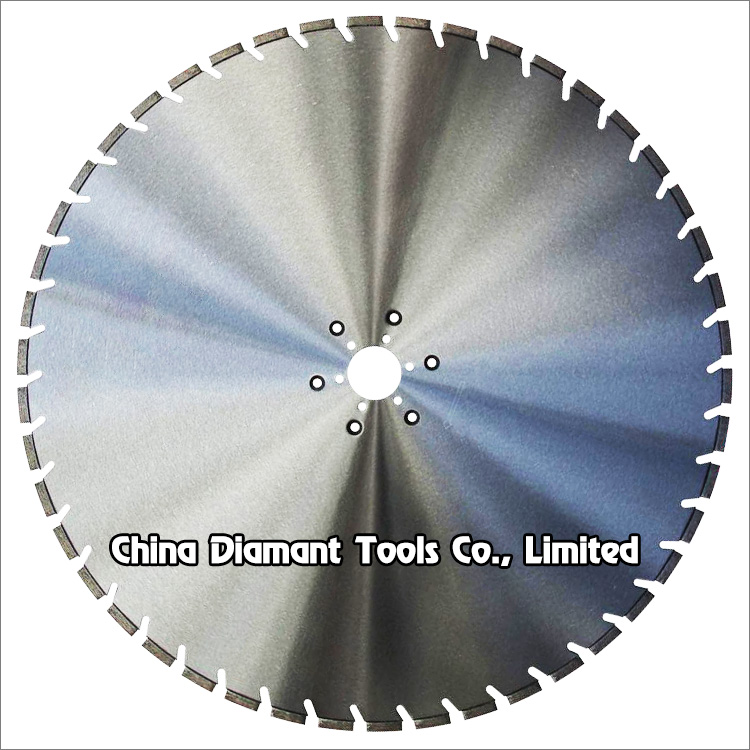

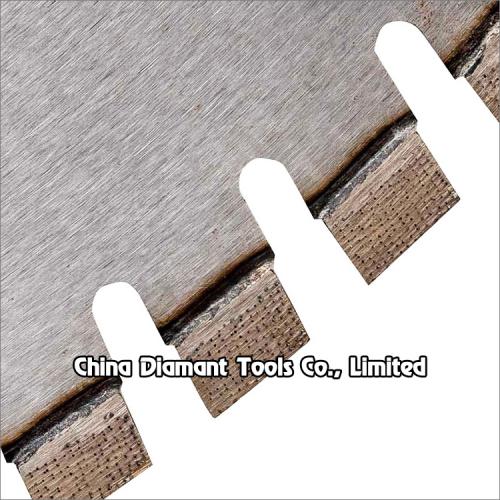

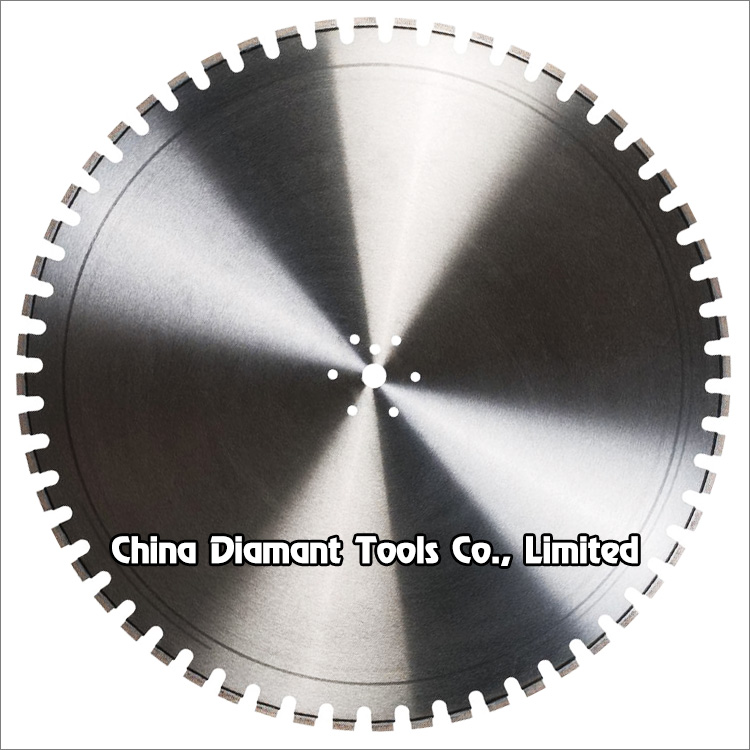

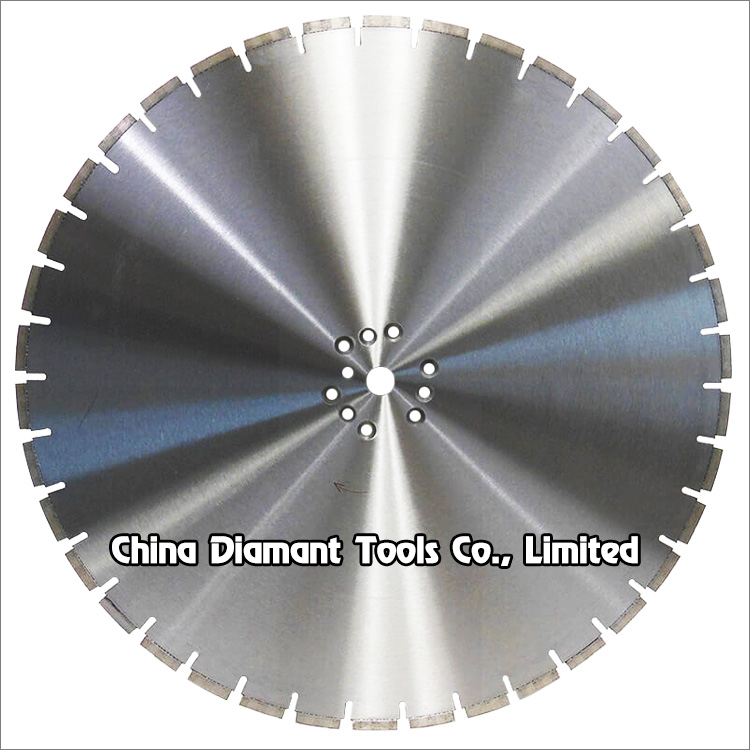

Diamond saw blades for concrete wall cutting - diagonal teeth with matrix segments

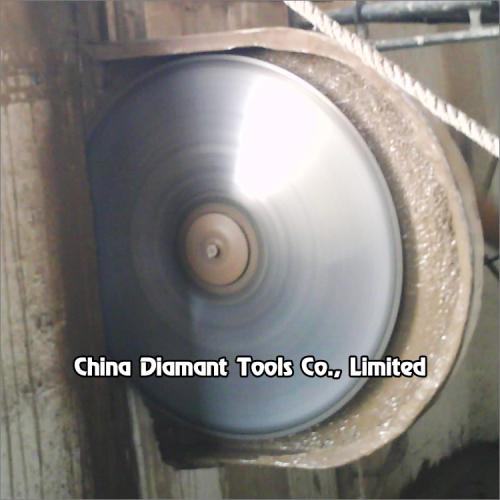

Laser welded diamond saw blades with diagonal teeth and matrix segments used to cut openings in concrete walls for the replacement of doors, windows, duets and for removing walls and floors for expansion or demolition, fast cutting less fatigue smooth operation and long life.
Under same bond condition, the cutting speed and life of blades with diamond matrix segments are both minimum 20% more than other regular blades.
Widely used on the projects of Civil engineering, structural steel, waterproofing, architectural renovation works, etc. to cut various materials such as steel bar, concrete, reinforced concrete, large dimension pipes or tubes, and other building materials.
Running on electric tracking machine, air or hydraulic saws, saw power from 10HP to 60HP.
Dry or wet use.
Various bore sizes, bond types are available upon wall saw type, RPM, power, materials.
Bore size: 25.4mm, 30.5mm, 35mm, 50mm, 60mm, 80mm or as per demand.
Steel core thickness: 3.5mm or as per demand.
Welding type: laser welded.
| Code No. |
Diameter |
Segment Size (L x W x H mm) |
Segment No. |
| SBW-06-600 |
600mm(24") |
20x4.8x13.5mm |
64 |
| SBW-06-650 |
650mm(26") |
20x4.8x13.5mm |
68 |
| SBW-06-700 |
700mm(28") |
20x4.8x13.5mm |
72 |
| SBW-06-750 |
750mm(30") |
20x4.8x13.5mm |
74 |
| SBW-06-800 |
800mm(32") |
20x4.8x13.5mm |
80 |
| SBW-06-825 |
825mm(33") |
20x4.8x13.5mm |
82 |
| SBW-06-900 |
900mm(36") |
20x4.8x13.5mm |
90 |
| SBW-06-1000 |
1000mm(40") |
20x4.8x13.5mm |
100 |
| SBW-06-1200 |
1200mm(48") |
20x4.8x13.5mm |
120 |
The above specifications & photos are for reference, other specification may be available as per customer's demand.
