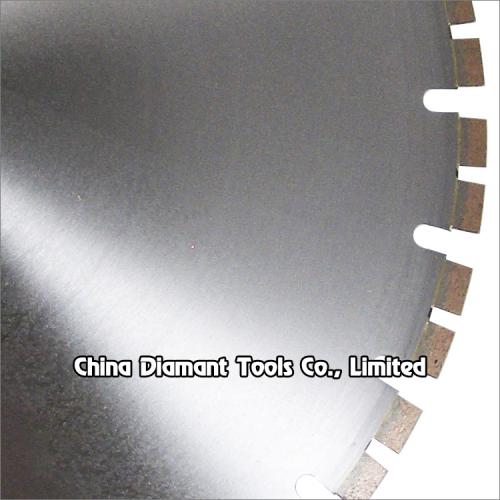

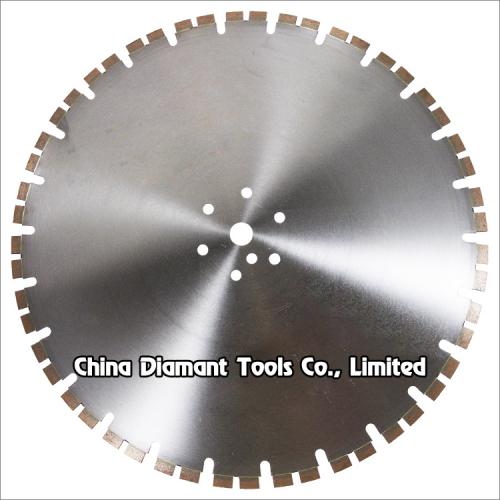

Diamond saw blades for concrete wall cutting - double short length flat segments
Diameter: 450mm-1200mm
Bore: 25.4-80mm
Segment height: 12mm,15mm
Segment type: short length
Production process: silver or laser welding
Diamond saw blades for concrete wall cutting - double short length flat segments
Laser or silver welded diamond saw blades with double short length flat segments used to cut openings in concrete walls for the replacement of doors, windows, duets and for removing walls and floors for expansion or demolition, fast cutting less fatigue smooth operation and long life.
Widely used on the projects of Civil engineering, structural steel, waterproofing, architectural renovation works, etc. to cut various materials such as steel bar, concrete, reinforced concrete, large dimension pipes or tubes, and other building materials.
Running on electric tracking machine, air or hydraulic saws, saw power from 10HP to 60HP.
Dry or wet use.
Various bore sizes, bond types are available upon wall saw type, RPM, power, materials.
Bore size: 25.4mm, 30.5mm, 35mm, 50mm, 60mm, 80mm or as per demand.
Steel core thickness: 3.5mm or as per demand.
Welding type: Laser welded or silver welded(wet use only).
| Code No. |
Diameter |
Segment Size (L x W x H mm) |
Segment No. |
| SBW-04-450 |
450mm(18") |
20x4.6x10/12mm |
30*2 |
| SBW-04-500 |
500mm(20") |
20x4.6x10/12mm |
32*2 |
| SBW-04-600 |
600mm(24") |
20x4.6x10/12mm |
35*2 |
| SBW-04-625 | 625mm(25") |
20x4.6x10/12mm |
36*2 |
| SBW-04-650 |
650mm(26") |
20x4.6x10/12mm |
38*2 |
| SBW-04-700 |
700mm(28") |
20x4.6x10/12mm |
40*2 |
| SBW-04-750 |
750mm(30") |
20x4.6x10/12mm |
42*2 |
| SBW-04-800 |
800mm(32") |
20x4.6x10/12mm |
46*2 |
| SBW-04-900 |
900mm(36") |
20x4.6x10/12mm |
52*2 |
| SBW-04-1000 |
1000mm(40") |
20x4.6x10/12/15mm |
58*2 |
| SBW-04-1200 |
1200mm(48") |
20x4.6x10/12/15mm |
68*2 |
The above specifications & photos are for reference, other specification may be available as per customer's demand.
