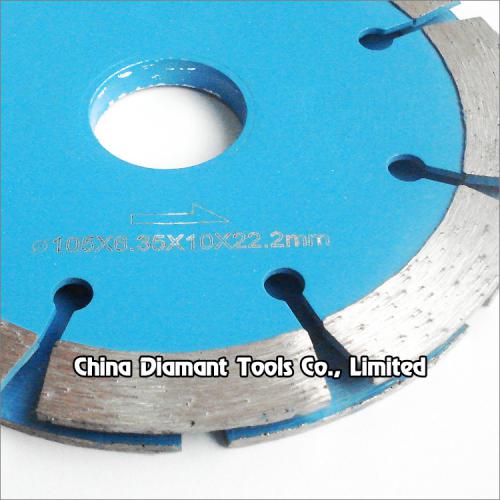

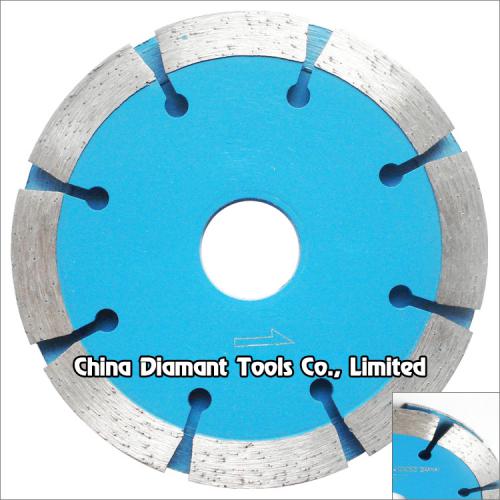

Diamond tuck point saw blades - sandwich(double-pc assembled)
Diameter: 105mm-230mm
Bore: 20/22.23mm
Segment height: H10mm
Segment type: normal flat
Production process: hot-press sintered or laser welded.
Diamond tuck point saw blades - sandwich(double-pc assembled)

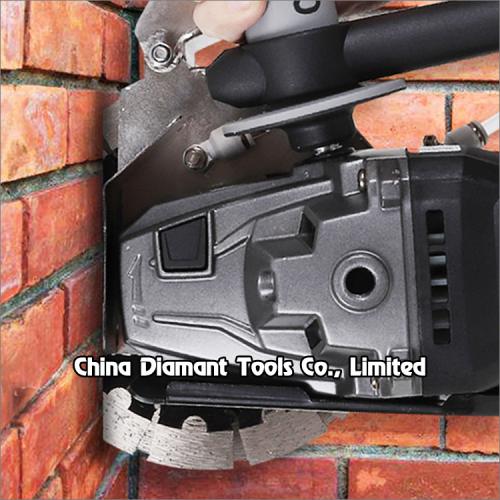

Diamond tuck point blades are installed on angle grinders for grooving, chasing, cutting, repairing and widening cracks in concrete, brick, block, stone, asphalt, etc. for foundation repair, driveway repair, concrete repair, and general crack repair.
Compare with traditional diamond tuck point blades, sandwiched diamond tuck point blades provide more aggressive and efficient cuts, they are mostly used to remove mortar joints.
Hot sintered, or laser welded.
Dry or wet use.
Used with angle grinders, tuck pointers.
Bore size: 15.88mm(5/8"), 22.23mm(7/8"), or as per demand.
Hot press sintered, or laser welded.
| Code No. |
Diameter |
Segment Width (W*H) |
| DTPB-03-105 |
105mm(4") |
1.8*10mm |
| DTPB-03-115 |
115mm(4.5") |
1.8*10mm |
| DTPB-03-125 |
125mm(5") |
2.0*10mm |
| DTPB-03-150 | 150mm(6") |
2.2*10mm |
| DTPB-03-180 |
180mm(7") |
2.2*10mm |
| DTPB-03-200 | 200mm(8") |
2.4*10mm |
| DTPB-03-230 | 230mm(9") |
2.6*10mm |
The above specifications & photos are for reference, other specification may be available as per demand.
