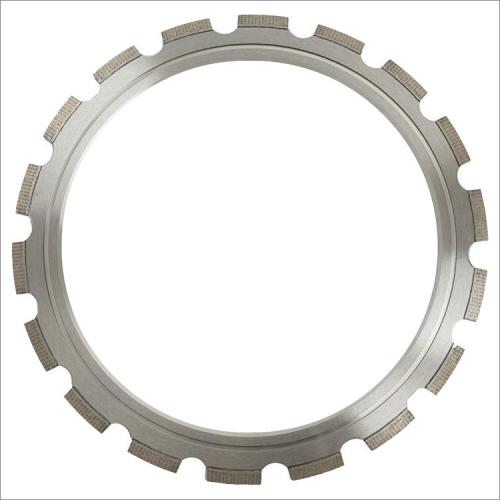

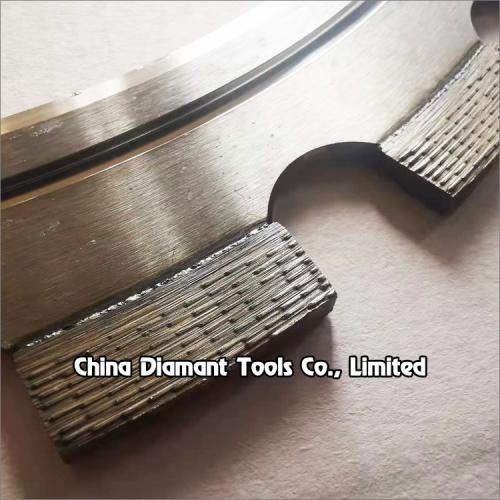

Arix diamond ring saw blade for concrete - laser welded, matrix segments
Diameter: 14"(350mm)
Bore: 288mm
Max cutting depth: 260mm
Segment size: 3.8x10mm
Segment type: matrix(arix) segments
Production process: laser welding
Diamond ring saw blade for concrete - laser welded, matrix segments
This laser welded diamond ring saw blade with matrix segments is used to make cutting on stone, bricks, asphalt, various concrete for hand-held ring saw machine, such as Husqvarna/Hycon ring saws.
Under same bond condition, the cutting speed and life of blades with diamond matrix segments are both minimum 20% more than other regular blades.
Soft bond for fast cutting, max cutting depth up to 260mm, usually for the construction of cutting reinforced concrete and railway concrete sleeper, etc., also be used for housing decoration wall window, cutting small openings and a small amount of adjustment windows, indoor and outdoor from brick to reinforced concrete various types of cutting, Pipeline installation, material removal, widely used in municipal construction projects, fire rescue, demolition, road and bridge construction, road maintenance, housing demolition, power repair and other mobile field operations.
It can be used dry, but will give better performance and life used wet.
| Code No. |
Diameter |
Segment Spec. (W x H mm) |
Segment Type |
| RSB-02-350 |
350mm(14") Hole: 288mm |
3.8x10mm |
Matrix |
The above specifications & photos are for reference, other specification may be available as per demand.
