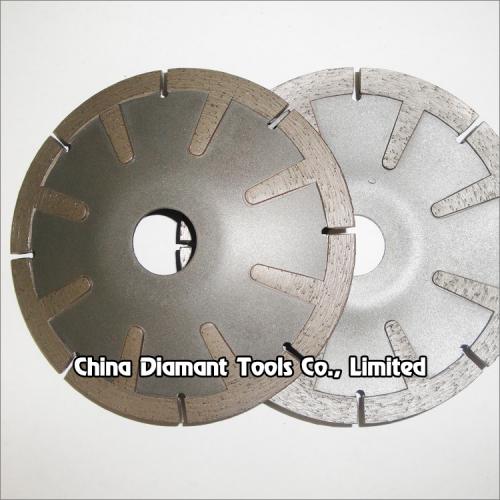

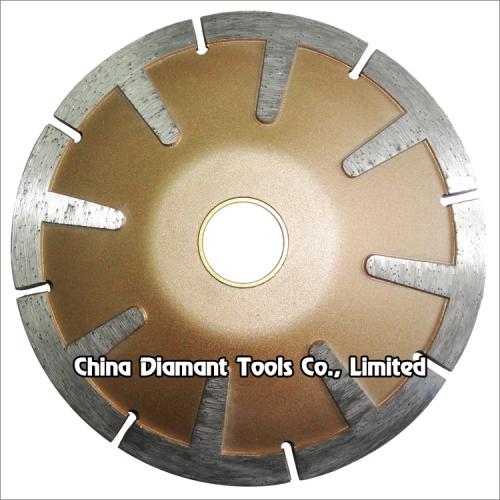

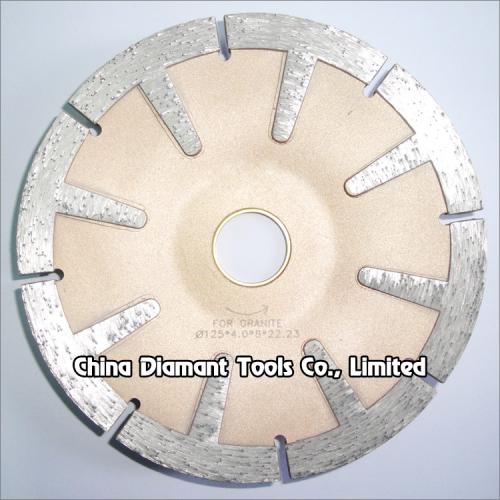

Diamond concave saw blades - T shape segmented
Diameter: 105-180mm
Bore: 20/22.23mm
Segment height: 8mm
Segment No.: 8-14pcs
Production process: hot-press sintered
Diamond concave saw blades - T shape segmented

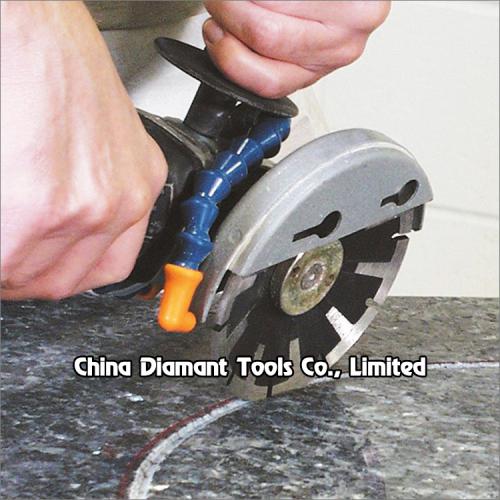

Diamond concave saw blades T shape segmented can be used in radius cutting, diameter from 4"(105mm) - 7"(180mm) for dry cutting circles or curved line on the slab, countertops, etc. The protection on the both in- and-out side provide faster cutting on various stone or granite, fast cutting and good life time.
1. Producing tech.: Hot sintered;
2. Outer diameter: 105mm, 115mm, 125mm, 150mm, 180mm;
3. Segment Height: 8mm;
4. Bore Size: 16mm, 20mm or 22.23mm;
5. Application: Nature stone like granite, marble. Engineered stone, quartz, etc;
6. Dry or wet use.
| Code No. |
Diameter |
Segment Type |
Segment No. |
| CSB-01-105 |
105mm(4") |
T Shape |
8 |
| CSB-01-115 | 115mm(4.5") | 9 | |
| CSB-01-125 |
125mm(5") |
9/10 | |
| CSB-01-150 |
150mm(6") |
12 | |
| CSB-01-180 |
180mm(7") |
14 |
Our concave blade is a good choice for your cutting sinkholes or other inside arcs. The blades use soft bond for fast aggressive cuts on various stones including hard granite. They can be run on most electric grinders and will cut through either 2cm or 3cm stone. They have core protection on the inside and the outside of the blade to help reduce heat build up and to prevent binding. They will also give you a smoother finish.
The above specifications & photos are for reference, other specification may be available as per demand.
