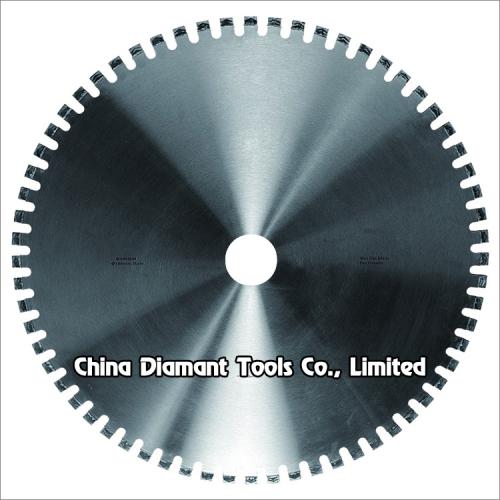

900mm-3500mm diamond circular saw blades for granite block cutting
Diameter: 900-3500mm
Core thickness: 5-10mm
Blade type: single blade
Material cutting: granite,hard stone
Segment structure: multi-layer or sandwich
900mm-3500mm diamond circular saw blades for granite block cutting (Single Blade)
Diamond segmented circular saw blades for block cutting of granite, sandstone, slate, various hard stone with quartz, suitable for bridge block cutter, gantry block cutting machine or single arm stone cutting machines, cutting granite blocks to slabs or tiles (stripes).
Welding method: Silver welded by high frequency welding machine.
Wet use only with sufficient water, fast & smooth cutting, long life, high ratio of performance to price.
Segment structure: Multi-Layers or Sandwich.
| Code No. |
Diameter (mm) |
Segment Dimension (L×W×H mm) |
Segment No. |
| DSB-GBC-01-0900 |
900 |
24x7.0/6.5x10/12/15/20 |
64 |
| DSB-GBC-01-1000 |
1000 |
24x7.0/6.5x10/12/15/20 |
70 |
| DSB-GBC-01-1100 |
1100 |
24x7.4/6.8x12/15/20 |
74 |
| DSB-GBC-01-1200 |
1200 |
24x7.5/7.0x12/15/20 |
80 |
| DSB-GBC-01-1300 |
1300 |
24x8.0/7.5x12/15/20 |
88 |
| DSB-GBC-01-1350 |
1350 |
24x8.4/7.7x12/15/20 |
88 |
| DSB-GBC-01-1400 |
1400 |
24x8.5/8.0x12/15/20 |
96 |
| DSB-GBC-01-1600 |
1600 |
24x9.0/8.7/8.4x12/15/20 |
104/108 |
| DSB-GBC-01-1700 |
1700 |
24x9.4/8.9/8.4x12/15/20 |
112 |
| DSB-GBC-01-1800 |
1800 |
24x9.5/9.0x12/15/20 |
120 |
| DSB-GBC-01-2000 |
2000 |
24x10.5/10/9.5x15/20 |
128 |
| DSB-GBC-01-2200 |
2200 |
24x11.5/11/10.5x15/20 |
132/136 |
| DSB-GBC-01-2500 |
2500 |
24/30x12/11.5/11x15/20/25/30 |
140 |
| DSB-GBC-01-2700 |
2700 |
24/30x12/11.5/11x15/20/25/30 |
140 |
| DSB-GBC-01-3000 |
3000 |
24/30x12.5/12/11.5x15/20/25/30 |
160 |
| DSB-GBC-01-3500 |
3500 |
24/30x13/12.5/12x15/20/25/30 |
180 |
The following are the different shapes design of diamond segments:
|
|
|
|
Taper Shape, Block Cutting
|
Taper << Shape, Block Cutting
|
|
|
|
|
Male&Female < Top, Block Cutting
|
Taper || Shape, Block Cutting |
|
|
|
|
Taper W Top, Block Cutting |
Taper W Top <<, Block Cutting |
The above specifications is for reference, other Specifications may be available as per demand.
Remarks:

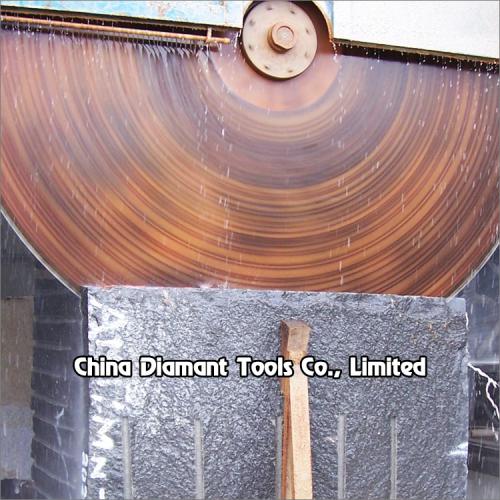

Diamond saw blade used for granite block cutting in diameter 900mm up to 3500mm is called granite block cutting saw blade, there is two type of granite block cutter, one is single blade and the other is multi cutter. In this title, we describe diamond saw blade for single blade granite block cutter.
Popular diameter in use are diameter 1200mm, 1600mm, 2000mm, 2500mm and 3000mm,
cutting granite tiles or slabs from 45cm (1200mm blade) up to 135cm (3000mm
blade) as per sizes needed from order or works. Most factories use non-silent or
normal steel blank in their production considering the cost factor. Silent steel
blank for bigger diameter blade is much more expensive and not so economic
compared to bridge saw blades in smaller diameters and less cost.
