Diamond horizontal cutting saw blade for marble, basalt, travertine, limestone
Diameter: 350-650mm
Bore: 50mm,60mm
Body type: normal
Segment height: 8mm
Material cutting: marble,soft stone
Production process: high-frequency welded

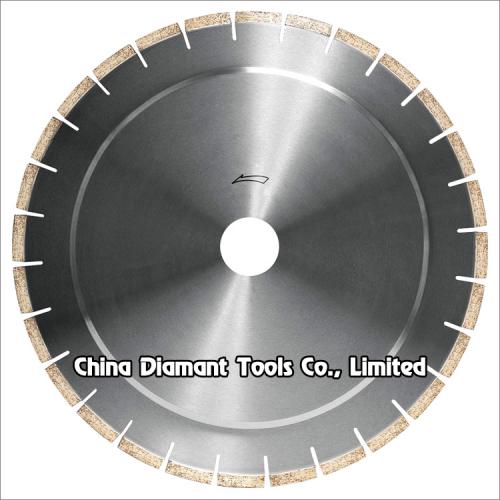

Diamond horizontal cutting saw blade for marble, basalt, travertine, limestone
This diamond horizontal cutting blade is used on marble block cutting machines, it cut the slabs edge from the block bottom after the vertical cutting of slabs.
Welding method: silver welded by high frequency welding machine.
Wet use only, fast & smooth cutting, long life.
Bore size: 50/60mm, or as per demand.
| Code No. |
Diameter (mm) |
Segment Size/No. (LxWxH)mm |
Core Thickness (mm) |
| SBHM-01 |
350 |
40x5x8*21pcs |
3.0/7.5 |
| SBHM-02 |
400 |
40x5x8*24pcs |
3.0/7.5 |
| SBHM-03 |
450 |
40x5.5x8*26pcs |
3.0/7.5 |
| SBHM-04 | 500 | 40x5.5x8*30pcs |
3.0/7.5 |
| SBHM-05 | 600 | 40x6x8*32pcs | 4.0 |
| SBHM-06 | 650 | 40x6x8*40pcs | 4.5 |
The above specifications & photos are for reference, other specification may be available as per demand.
