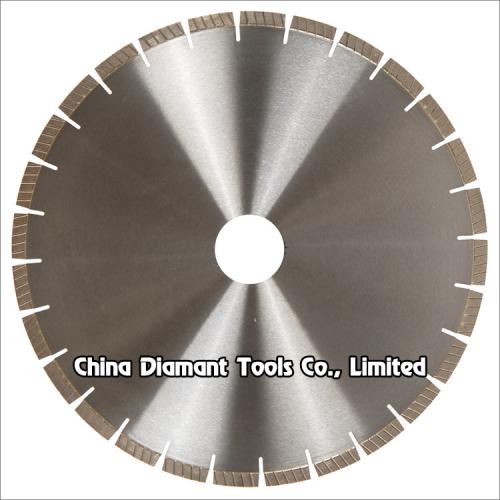

Diamond saw blades for granite slab edge cutting - diagonal groove segments
Diameter: 250-600mm
Bore: 50mm,60mm
Body type: normal or silent
Segment height: 10/12mm
Material cutting: granite,hard stone
Segment structure: sandwich
Production process: high-frequency welded
Diamond saw blades for granite slab edge cutting - diagonal groove segments

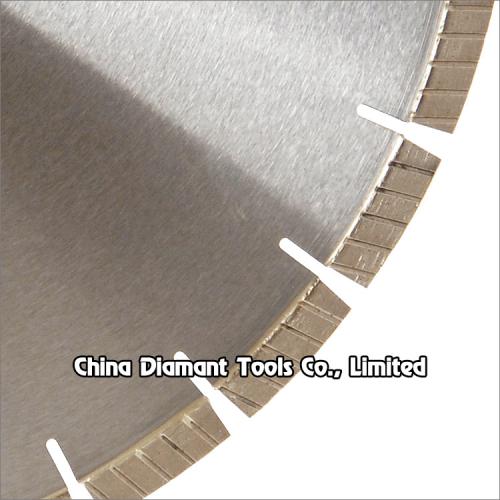

Diamond saw blades with diagonal turbo segments for cutting slab edge of granite, sandstone, various hard stones with quartz, fast and smooth cutting with long life.
Better cutting speed compared to normal segmented saw blades, water groove on the segments is better for fast coolant and chip removal.
The blades are mostly used on manual edge cutting machines, bridge cutting machines or table cutting machines.
Wet use only with sufficient water.
Segment height: 10mm, 12mm.
Steel core type: silent or non-silent(normal).
Bore size: 50/60mm, or as per demand.
Welding method: by high-frequency welding machine.
|
Code No. |
Diameter (mm/Inch) |
Segment Height (mm) |
Segment No. (pcs/set) |
|
SBEG-03-01 |
250mm(10") |
10/12 |
18 |
|
SBEG-03-02 |
300mm(12") |
10/12 |
21 |
|
SBEG-03-03 |
350mm(14") |
10/12 |
24 |
|
SBEG-03-04 |
400mm(16") |
10/12 |
28 |
|
SBEG-03-05 |
450mm(18") | 10/12 |
32 |
|
SBEG-03-06 |
500mm(20") |
10/12 |
36 |
|
SBEG-03-07 |
550mm(22") |
10/12 |
38 |
|
SBEG-03-08 |
600mm(24") |
10/12 |
42 |
The above specifications & photos are for reference, other specification may be available as per demand.
