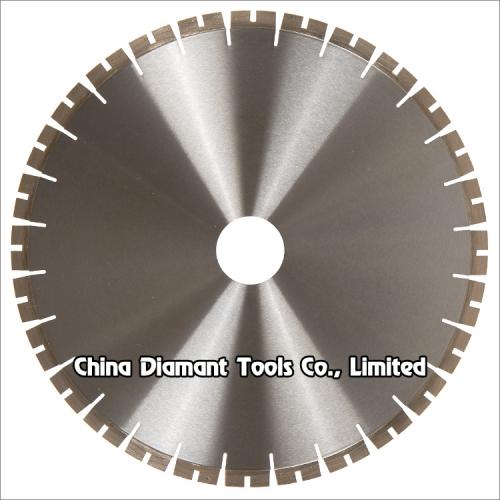

Diamond saw blades for granite slab edge cutting - >> shape taper with U slot segments
Diameter: 300-800mm
Bore: 50mm,60mm
Body type: normal or silent
Segment height: 20mm
Material cutting: granite,hard stone
Segment structure: multi-layer,sandwich
Production process: high-frequency welded

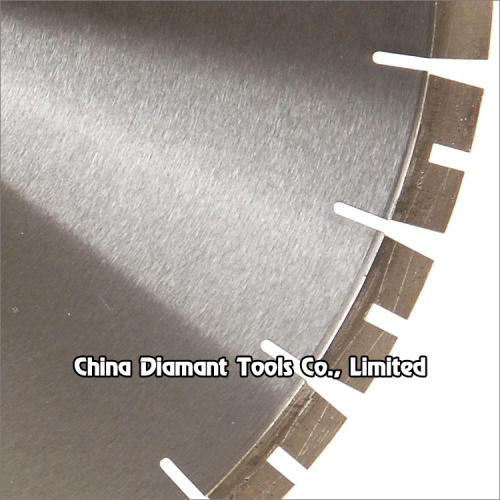

Diamond saw blades for granite slab edge cutting - >> Shape Taper with U slot Segments
Diamond saw blades with >> shape taper with U slot segments for cutting slab edge of granite, sandstone, various hard stones with quartz, fast and smooth cutting with long life.
Better cutting speed compared to normal segmented saw blades by taper & U slot shape segments, also benefit for fast coolant.
The blades are mostly used on manual edge cutting machines, bridge cutting machines or table cutting machines.
Wet use only with sufficient water.
Segment height: 20mm.
Steel core type: silent or non-silent(normal).
Bore size: 50/60mm, or as per demand.
Welding method: by high-frequency welding machine.
|
Code No. |
Diameter (mm/Inch) |
Segment Size (mm) |
Segment No. (pcs/set) |
|
SBEG-05-300 |
300mm(10") |
41x3.6/3.2/3.0x15 |
21 |
|
SBEG-05-350 |
350mm(14") |
41x3.6/3.2/3.0x15 |
24 |
|
SBEG-05-400 |
400mm(16") |
41x4.0/3.7/3.4x15 |
28 |
|
SBEG-05-500 |
500mm(20") |
41x4.3/4.0/3.7x15 |
36 |
|
SBEG-05-600 |
600mm(24") |
41x5.0/4.7/4.4x15 |
42 |
|
SBEG-05-700 |
700mm(28") |
41x5.5/5.2/4.9x15 |
50 |
| SBEG-05-800 | 800mm(32") | 41x6.0/5.7/5.4x15 | 57 |
The above specifications & photos are for reference, other specification may be available as per demand.
