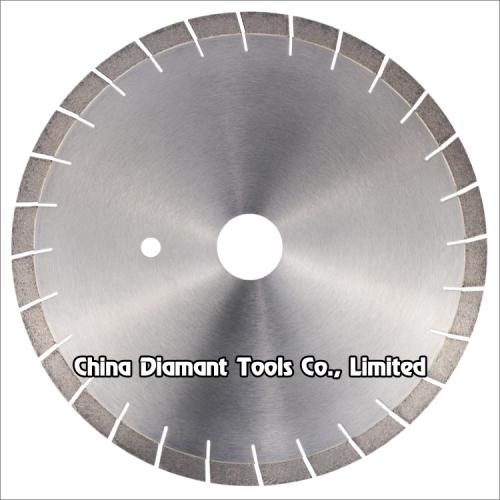

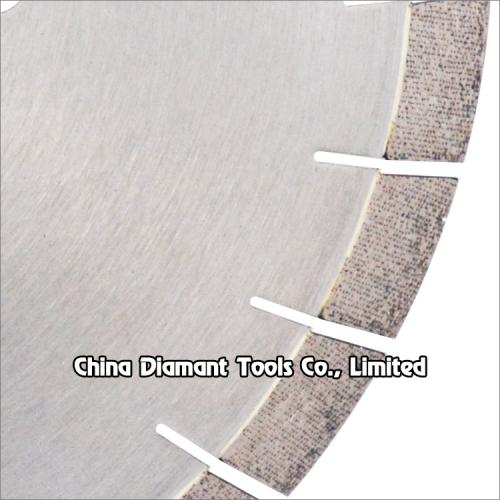

Diamond saw blades for granite slab edge cutting - diagonal matrix segments

item No : SBEG-11
Diameter: 250-600mm
Bore: 50mm,60mm
Body type: normal or silent
Segment height: 12-20mm
Material cutting: granite,hard stone
Segment structure: matrix(arix)
Production process: high-frequency welded
Inquiry Now
Detailed Description

Diamond saw blades for granite slab edge cutting - diagonal matrix segments


Diamond saw blades with diagonal matrix segments for cutting slab edge of granite, sandstone, various hard stones with quartz, fast and smooth cutting with long life.

Under same bond condition, the cutting speed and life of blades with diamond matrix segments are both minimum 20% more than other regular blades.

The blades are mostly used on manual edge cutting machines, bridge cutting machines or table cutting machines.

Wet use only with sufficient water.



Segment height: 12mm, 15mm, 20mm.

Steel core type: silent or non-silent(normal).

Bore size: 50/60mm, or as per demand.

Welding method: by high-frequency welding machine.


Code No.

Diameter

(mm/Inch)

Segment Height

(mm)

Segment No.

(pcs/set)

SBEG-11-01

250mm(10")

12/15

18

SBEG-11-02

300mm(12")

12/15

21

SBEG-11-03

350mm(14")

12/15/20

24/25

SBEG-11-04

400mm(16")

12/15/20

28

SBEG-11-05

450mm(18")

12/15/20

32

SBEG-11-06

500mm(20")

12/15/20

36

SBEG-11-07

550mm(22")

12/15/20

38

SBEG-11-08

600mm(24")

12/15/20

42


The above specifications & photos are for reference, other specification may be available as per demand.


Tags

diamond saw blades, granite cutting saw blades, granite edge cutting saw blades, granite slab cutting saw blades, granite cutting blades, granite cutting tools, granite slab edge cutting diamond saw blades, granite fast cutting diamond blades, long life granite cutting saw blades, granite tile cutting blades, granite tile saw cutting blades, cutting granite tile blade, granite sink top cutting blades, granite cutting machine blades, granite cut blade, fast cut granite cutting blades, silent granite cutting diamond saw blades, sandstone cutting diamond saw blades, blades for cutting granite, blade to cut granite, circular saw blade to cut granite, diamond saw blade for cutting granite, granite cutting blades for circular saw, diamond granite cutting blades, granite countertops diamong blades, saw blades for cutting stone granite, silent diamond saw blades, arix diamond blades, arix diamond saw blades, arix granite cutting diamond saw blades, matrix diamond saw blades
Related Products

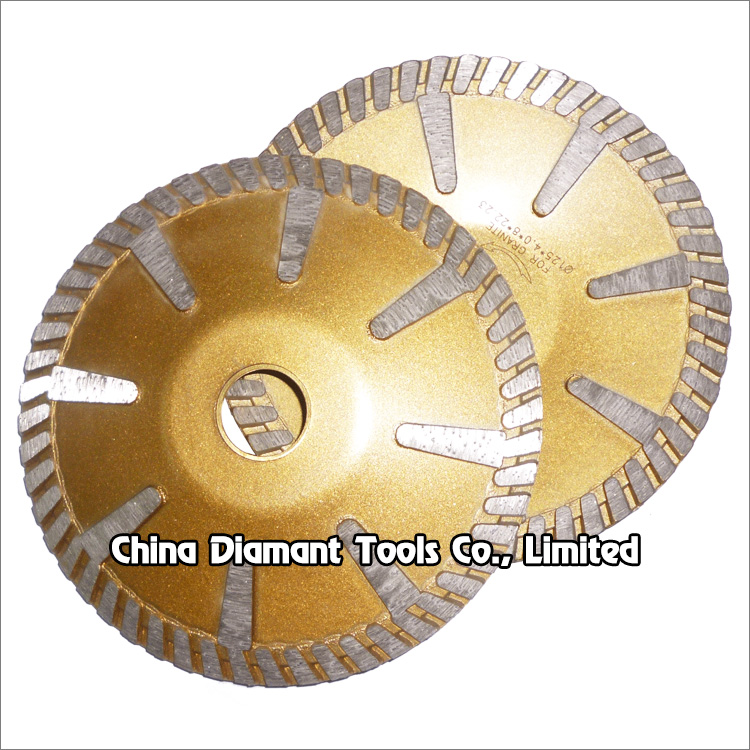

Diamond concave saw blades - continuous turbo rim with protecting teeth

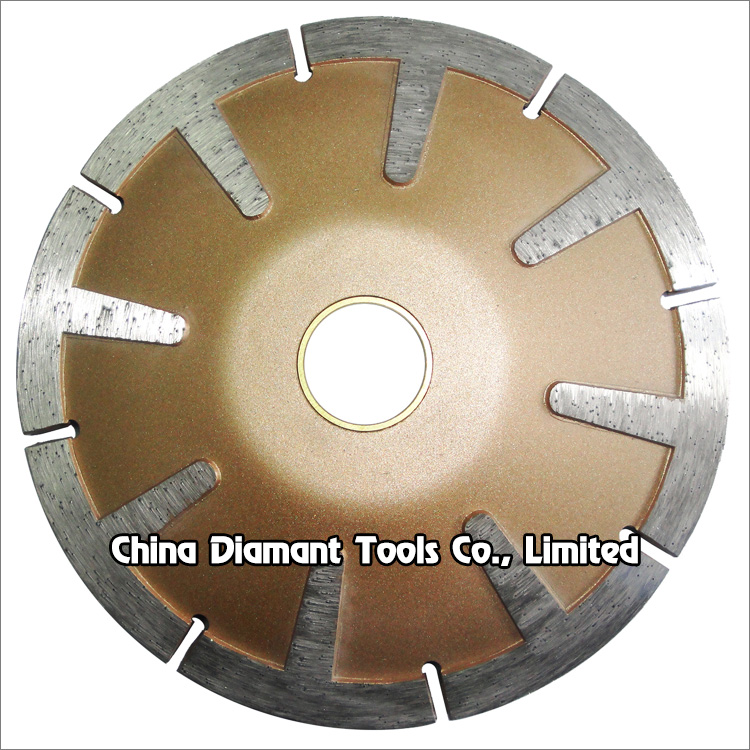

Diamond concave saw blades - T shape segmented
Diamond horizontal cutting saw blade for marble, basalt, travertine, limestone

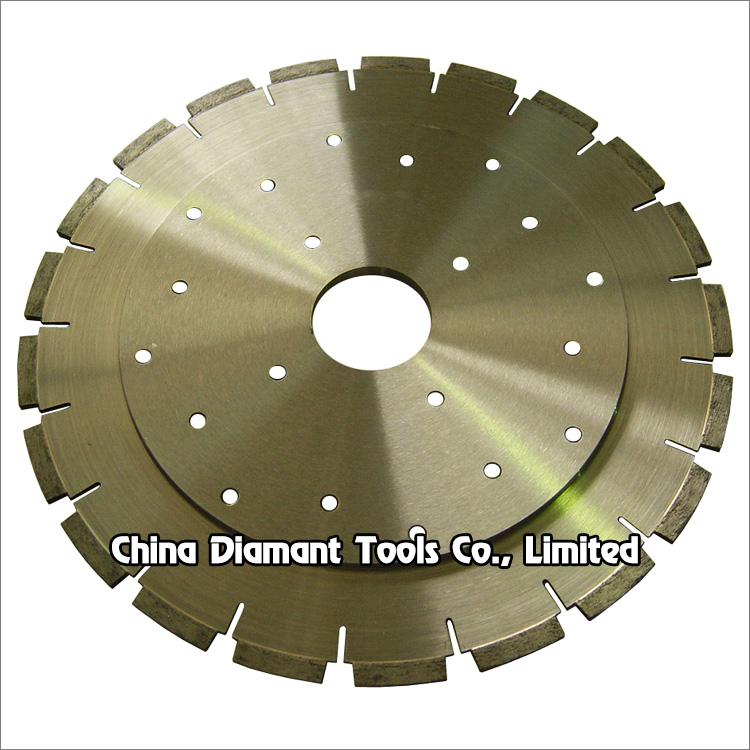

Diamond horizontal cutting saw blades for granite
Diamond saw blades for marble slab cutting - fishhook steel core with fanlike segments

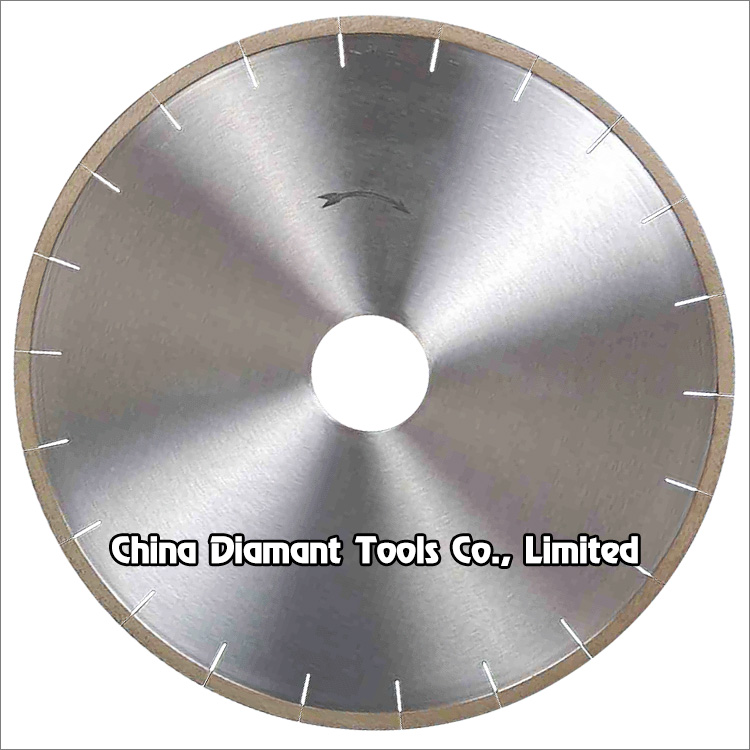

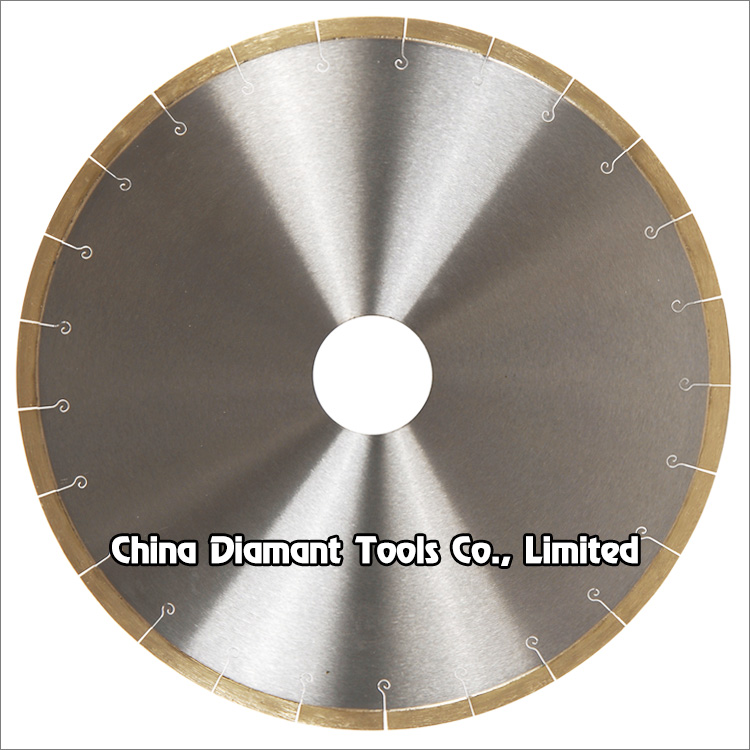

Diamond saw blades for marble slab cutting - fanlike segments(continuous rim type)
Diamond saw blades for marble slab cutting - normal flat segments

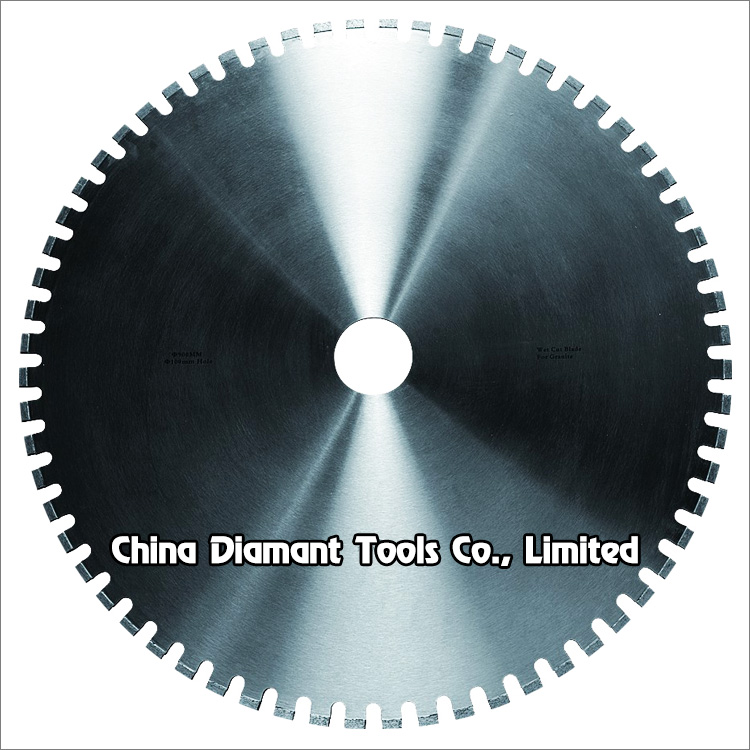

Diamond saw blades for block cutting of marble limestone soft stone
Diamond saw blades for granite slab edge cutting - matrix segments with V groove
Diamond saw blades for granite slab edge cutting - diagonal matrix segments
Diamond saw blades for granite slab edge cutting - matrix(arix) segments

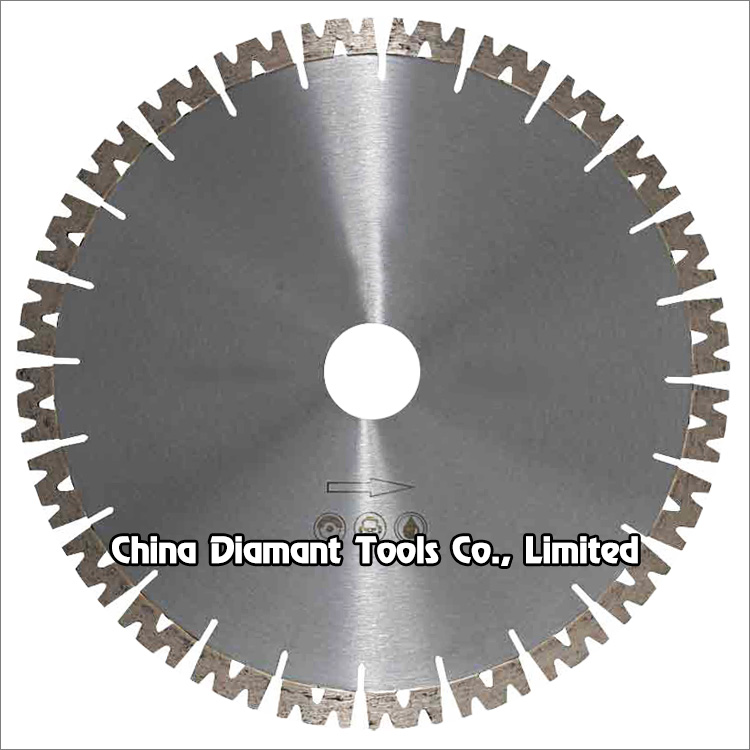

Diamond saw blades for granite slab edge cutting - W shape segments
Diamond saw blades for granite slab edge cutting - || step taper with U slot segments
Diamond saw blades for granite slab edge cutting - || step taper segments
Diamond saw blades for granite slab edge cutting - L20mm || step taper segments
Diamond saw blades for granite slab edge cutting - >> shape taper with U slot segments
Diamond saw blades for granite slab edge cutting - >> shape taper segments
Diamond saw blades for granite slab edge cutting - diagonal groove segments
Diamond saw blades for granite slab edge cutting - straight groove segments

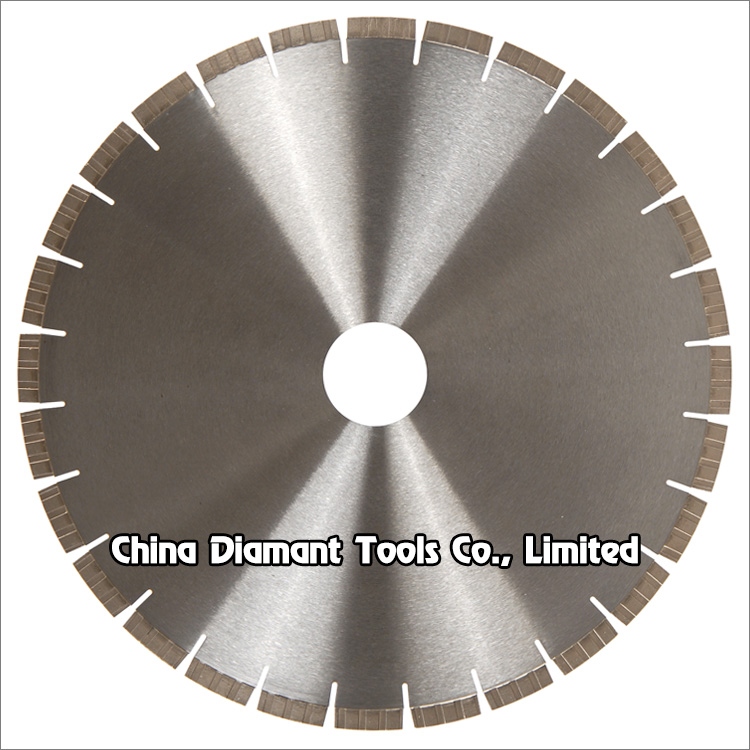

Diamond saw blades for granite slab edge cutting - normal flat segments

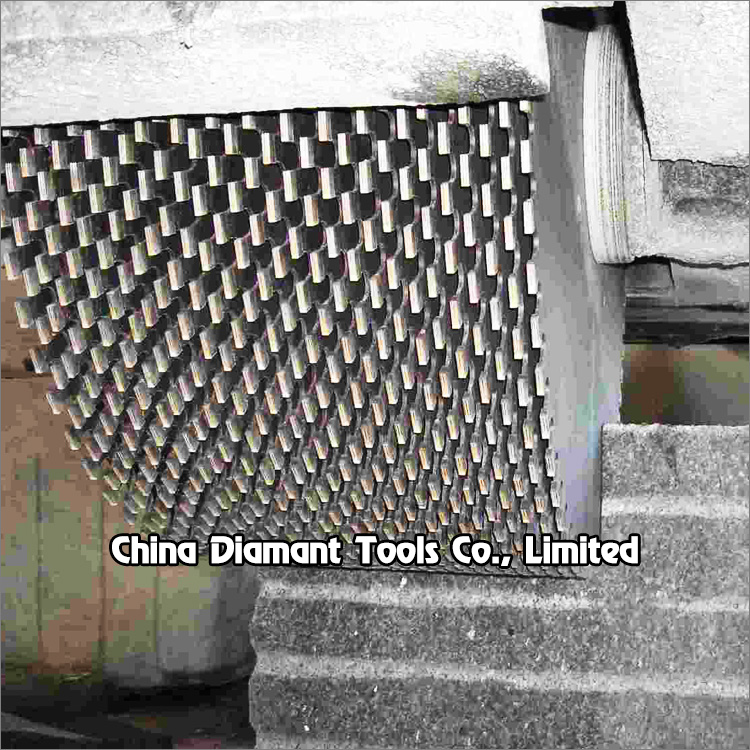

Diamond circular saw multi-blades for granite block cutting

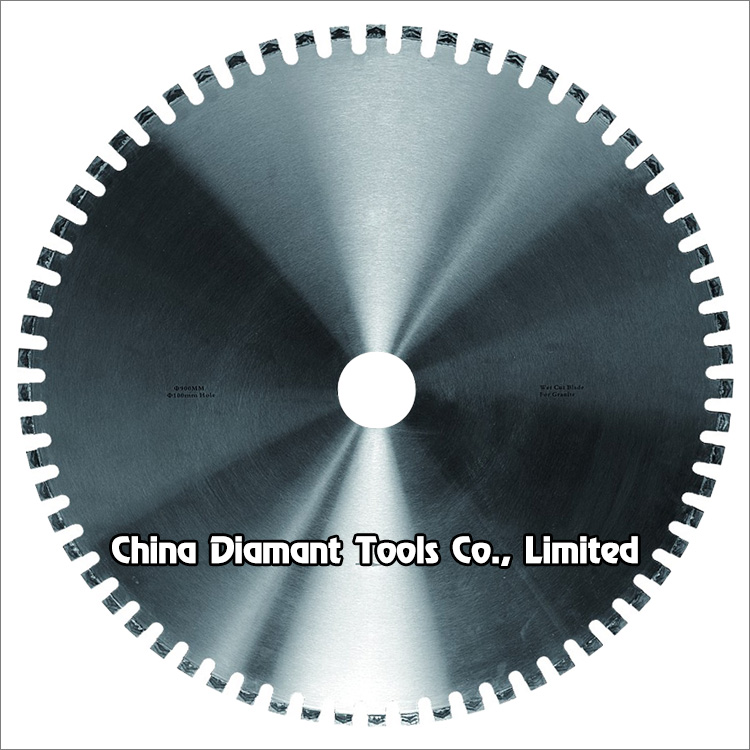

900mm-3500mm diamond circular saw blades for granite block cutting
