Diamond horizontal cutting saw blades for granite
Diameter: 350-650mm
Bore: 50mm,60mm
Body type: normal
Segment height: 10mm
Material cutting: granite
Production process: high-frequency welded.

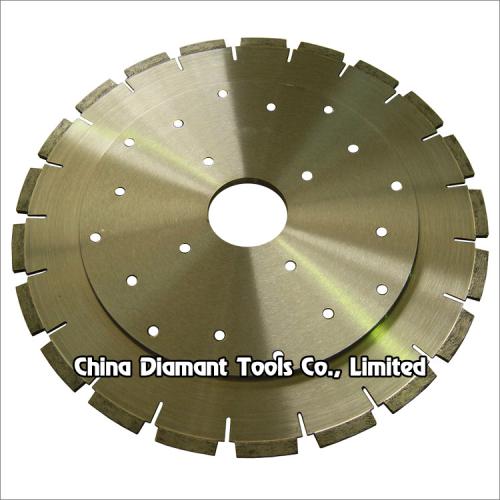

Diamond horizontal cutting saw blades for granite
Diamond horizontal cutting blade is usually used on granite multi-saw blades cutting machines, it cut the slabs edge from the block bottom after the vertical cutting of slabs.
Welding method: silver welded by high frequency welding machine.
Wet use only, fast & smooth cutting, long life.
Bore size: 50/60mm, or as per demand.
| Code No. |
Diameter (mm) |
Segment Size/No. (LxWxH)mm |
Core Thickness (mm) |
| SBHG-01-350 |
350 |
40x5.0x10*21pcs |
3.0/7.5 |
| SBHG-01-400 |
400 |
40x5.0x10*24pcs |
3.0/7.5 |
| SBHG-01-450 |
450 |
40x5.5x10*26pcs |
3.0/7.5 |
| SBHG-01-500 | 500 | 40x5.5x10*30pcs |
3.0/7.5 |
| SBHG-01-600 | 600 | 40x6.0x10*32pcs | 4.0 |
| SBHG-01-650 | 650 | 40x6.0x10*40pcs | 4.5 |
The above specifications & photos are for reference, other specification may be available as per demand.
