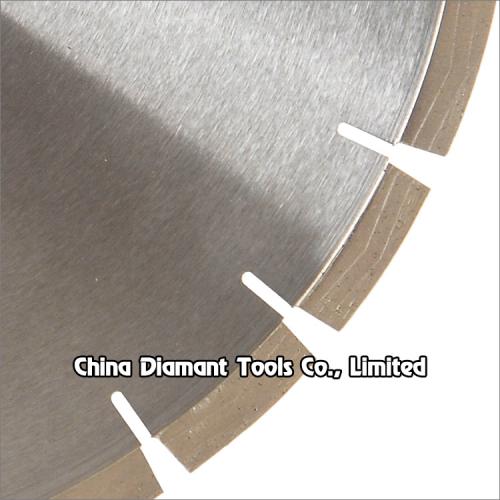

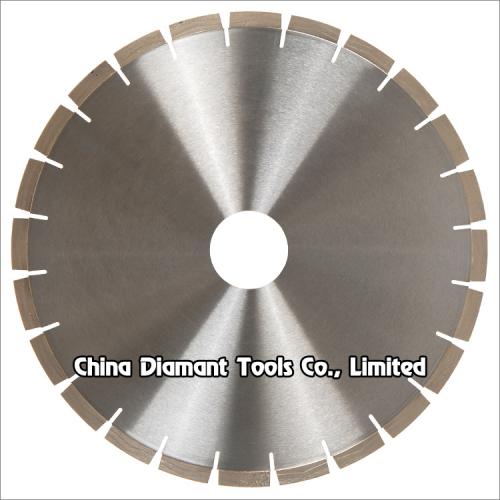

Diamond saw blades for granite slab edge cutting - >> shape taper segments

item No : SBEG-04
Diameter: 250-600mm
Bore: 50mm,60mm
Body type: normal or silent
Segment height: 12mm
Material cutting: granite,hard stone
Segment structure: multi-layer,sandwich
Production process: high-frequency welded
Inquiry Now
Detailed Description

Diamond saw blades for granite slab edge cutting - >> shape taper segments


Diamond saw blades with >> shape taper segments for cutting slab edge of granite, sandstone, various hard stones with quartz, fast and smooth cutting with long life.


Better cutting speed compared to normal segmented saw blades by taper shape segments due to less contact surface between segments and slabs to reduce the resistance, also benefit for fast coolant.

The blades are mostly used on manual edge cutting machines, bridge cutting machines or table cutting machines.

Wet use only with sufficient water.


Segment height: 12mm, 15mm, 20mm

Steel core type: silent or non-silent(normal).

Bore size: 50/60mm, or as per demand.

Welding method: by high-frequency welding machine.


Code No.

Diameter

(mm/Inch)

Segment Height

(mm)

Segment No.

(pcs/set)

SBEG-04-01

300mm(12")

12

24

SBEG-04-02

350mm(14")

12

24

SBEG-04-03

400mm(16")

12

28

SBEG-04-04

450mm(18") 12

32

SBEG-04-05

500mm(20")

12

36

SBEG-04-06

550mm(22")

12

38

SBEG-04-07

600mm(24")

12

42


The above specifications & photos are for reference, other specification may be available as per demand.
